Question: 7 - 3 3 . The beam is constructed from two boards fastened together at the top and bottom with three rows of nails spaced

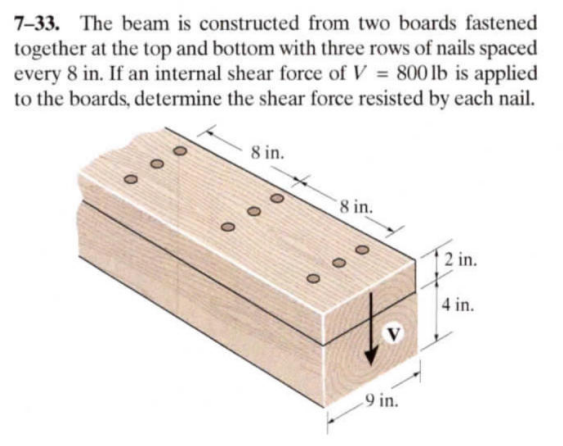

7-33. The beam is constructed from two boards fastened together at the top and bottom with three rows of nails spaced every 8 in . If an internal shear force of \( V=800\mathrm{lb}\) is applied to the boards, determine the shear force resisted by each nail.
7 - 3 3 . The beam is constructed from two boards

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

The beam is constructed from two boards fastened together at the top and bottom with three rows of nails spaced every 4 in. If each nail can support a 400-lb shear force, determine the maximum shear...

Q:

The beam is constructed from two boards fastened together at the top and bottom with three rows of nails spaced every 4 in. If a sheer force of V = 900 lb is applied to the boards, determine the...

Q:

The beam is constructed from two boards fastened together at the top and bottom with two rows of nails spaced every 6 in . ( Figure 1 ) Part A If an internal shear force of V = 6 4 0 l b is applied...

Q:

The beam is constructed from two boards fastened together at the top and bottom with three rows of nails spaced every 8 in. If each nail can support a \(300-\) lb shear force, determine the maximum...

Q:

The beam is constructed from two boards fastened together at the top and bottom with three rows of nails spaced every 4 in . If a shear force of V = 9 0 0 l b is applied to the boards, determine the...

Q:

The beam is constructed from two boards fastened together at the top and bottom with three rows of nails spaced every \(8 \mathrm{in}\). If an internal shear force of \(V=800 \mathrm{lb}\) is applied...

Q:

The beam is constructed from two boards fastened together at the top and bottom with two rows of nails spaced every 6 in . If each nail can support a 5 8 0 l b shear force, determine the maximum...

Q:

Part A The beam is constructed from two boards fastened together at the top and bottom with two rows of nails spaced every 6 i n . If each nail can support a 6 0 0 l b shear force, determine the...

Q:

The beam is constructed from two boards fastened together at the top and bottom with three rows of nails as shown in . ( Figure 1 ) Part A If the beam is subjected to a sheart force V = 2 5 k N...

Q:

Question 2 : The beam is constructed from two boards fastened together with three rows of nails spaced s = 5 0 m m apart. If each nail can support a 2 . 2 5 k N shear force, determine the maximum...
