Question: 7 - 3 4 . Determine the internal normal force, shear force, and moment at point E . Probs. 7 - 3 3 / 3

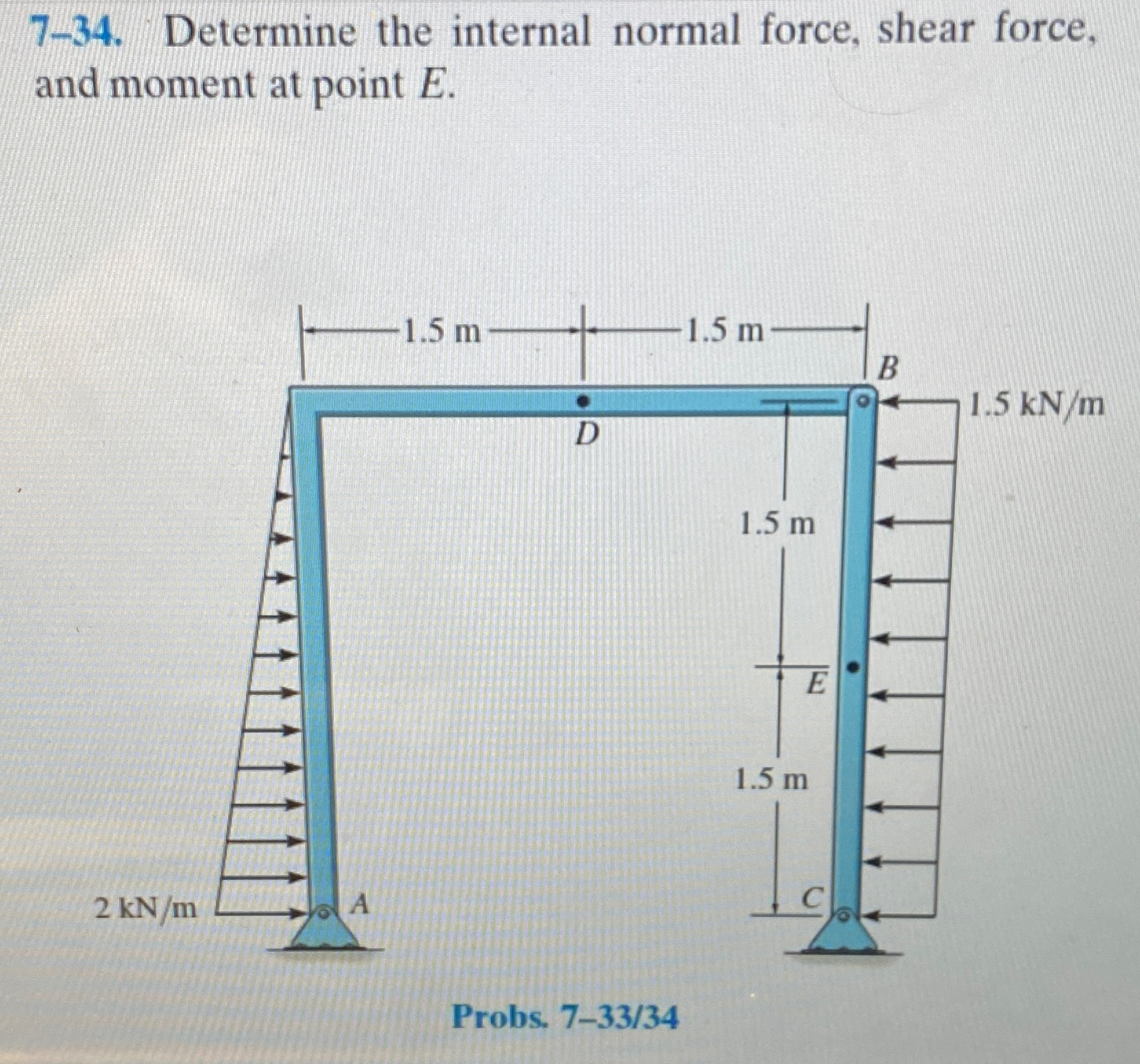

7-34. Determine the internal normal force, shear force, and moment at point E.
Probs. 7-33/34
7 - 3 4 . Determine the internal normal force,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
