Question: 7 - 3 5 . The beam is constructed from three boards. Determine the maximum shear V that it can support if the allowable shear

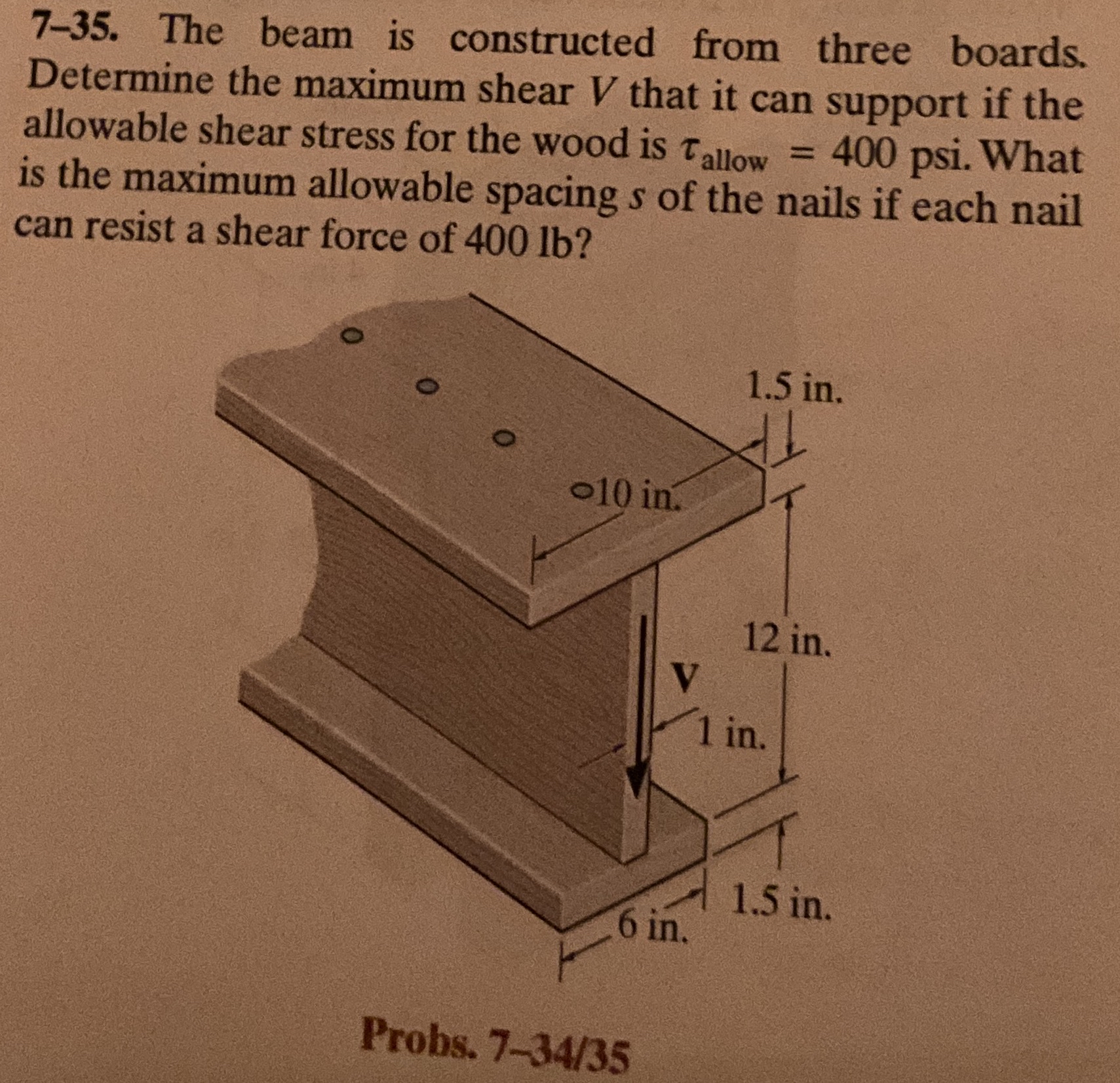

7-35. The beam is constructed from three boards. Determine the maximum shear V that it can support if the allowable shear stress for the wood is allow=400. What is the maximum allowable spacing s of the nails if each nail can resist a shear force of 400 lb ?
Probs. 7-3435
7 - 3 5 . The beam is constructed from three

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

The beam is constructed from three boards. Determine the maximum shear V that it can support if the allowable shear stress for the wood is Ï allow = 400 psi. What is the maximum allowable...

Q:

The beam is constructed from three boards. Determine the maximum loads P that it can support if the allowable shear stress for the wood is Ï allow = 400 psi. What is the maximum allowable...

Q:

The beam is constructed using three boards. If V = 7 kips, determine the maximum allowable nail spacing on the top and bottom of the beam. Each nail can support a shear force if 6 0 0 l b . Solution:...

Q:

2. The beam is constructed from three boards as shown in Fig. 2. Determine the maximum shear force V that it can support if the allowable shear stress for the wood is Tallow 2 MPa. What is the...

Q:

The beam is constructed from three boards. ( Figure 1 ) The allowable shear stress that the wood can sustain is a l l o w = 4 9 5 . Each nail can support a shear force of 3 7 5 lb . Figure Part C...

Q:

3) The beam Shown below is made of two boards. Determine the maximum shear stress in the glue necessary to hold the boards together along the seam where they are joined. (30 points) A 20 ft Pinned...

Q:

The beam is constructed from three boards. If it is subjected to a shear of V = 5 kip, determine the maximum allowable spacing s of the nails used to hold the top and bottom flanges to the web. Each...

Q:

Question 2 : The beam is constructed from two boards fastened together with three rows of nails spaced s = 5 0 m m apart. If each nail can support a 2 . 2 5 k N shear force, determine the maximum...

Q:

The Wooden Beam Was Constructed Using Three Wood Planks And Has The Dimensions As Shown. This Beam Is To Support A Load Of 500 Lbs. A) [4 Pts] Draw The Shear Diagram And Determine The Maximum Shear...

Q:

The T-beam is constructed as shown. If each nail can support a shear force of 950 lb, determine the maximum shear force V that the beam can support and the corresponding maximum nail spacing s to the...
