Question: 7 . 4 Give the network below, find the complex power supplied by the source, the power factor of the source, and the voltage

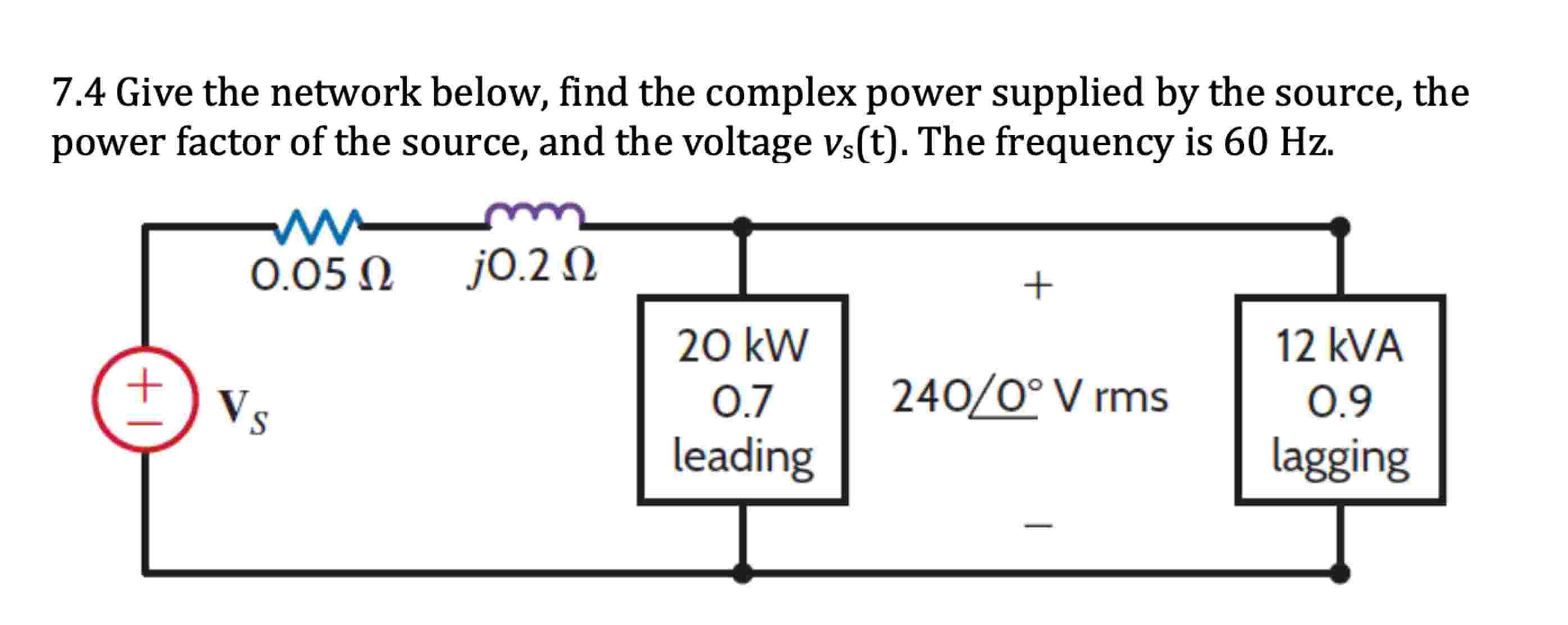

7.4 Give the network below, find the complex power supplied by the source, the power factor of the source, and the voltage \( v_{s}(t)\). The frequency is 60 Hz .
7 . 4 Give the network below, find the complex

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
