Question: 7 - 9 . The loading shown in Figure P 7 - 9 a is to be carried by the fabricated beam shown in Figure

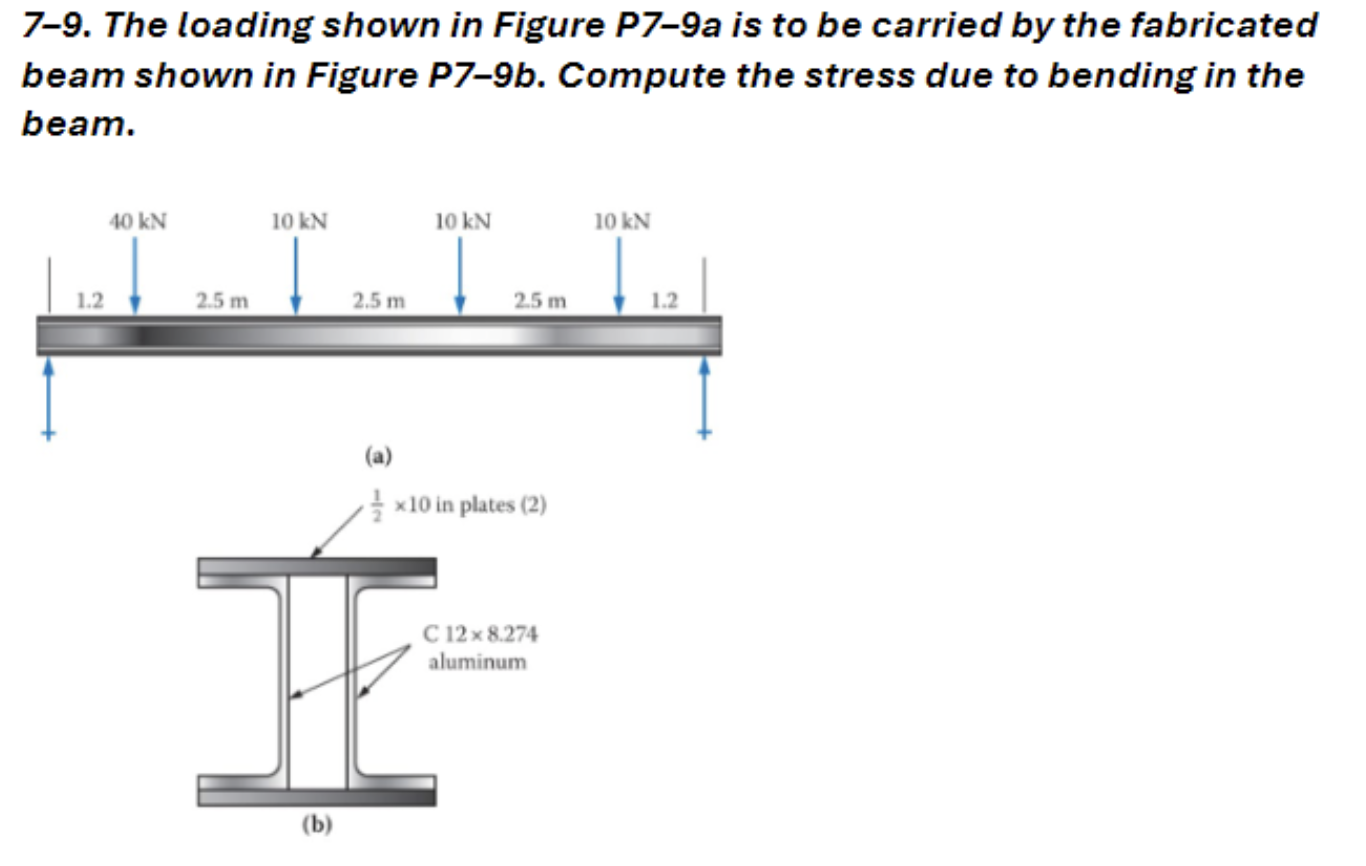

7-9. The loading shown in Figure P7-9a is to be carried by the fabricated beam shown in Figure P7-9b. Compute the stress due to bending in the beam.
7 - 9 . The loading shown in Figure P 7 - 9 a is

Step by Step Solution

There are 3 Steps involved in it
