Question: 7 - d ) A beam with the shown cross section is subjected to a vertical shear force, V = 1 8 0 kN ,

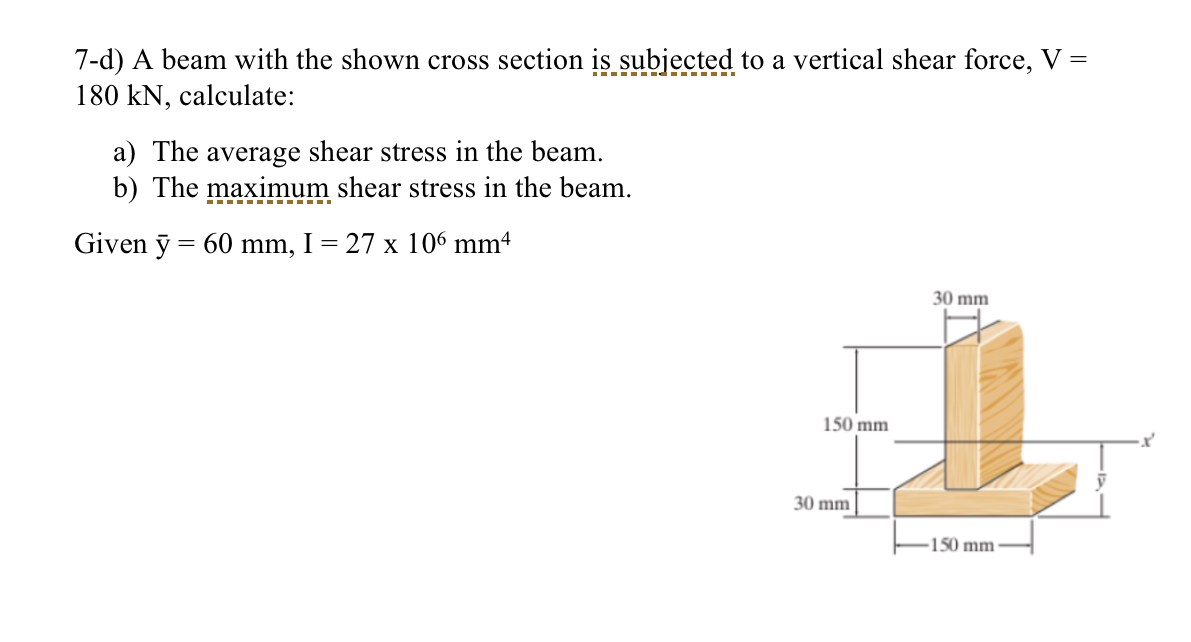

7-d) A beam with the shown cross section is subjected to a vertical shear force, V=180 kN , calculate:
a) The average shear stress in the beam.
b) The maximum shear stress in the beam.
Given ?bar(y)=60mm,I=27106mm4
7 - d ) A beam with the shown cross section is
