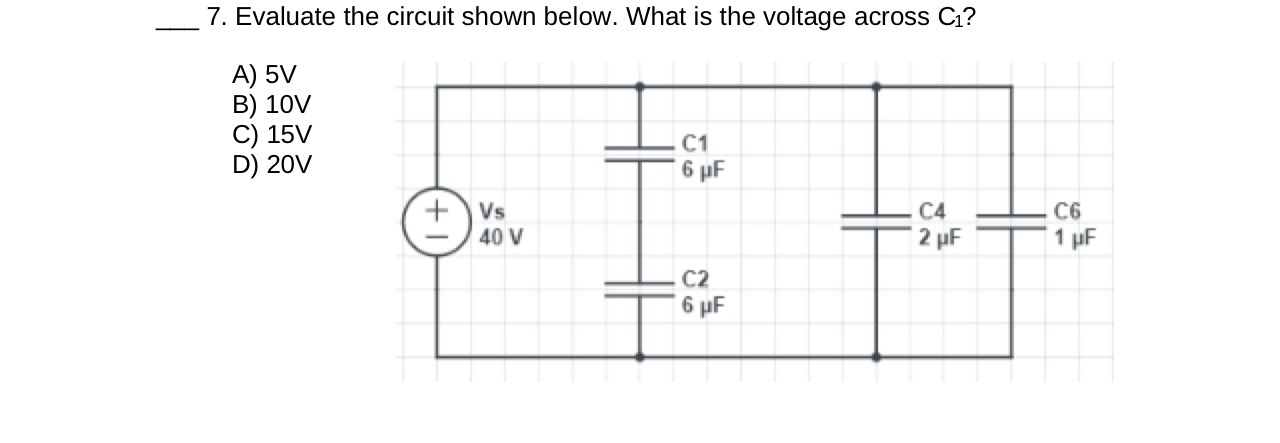

Question: 7. Evaluate the circuit shown below. What is the voltage across Ci? A) 5V B) 10V C) 15V C1 D) 20V 6 UF + Vs

7. Evaluate the circuit shown below. What is the voltage across

7. Evaluate the circuit shown below. What is the voltage across Ci? A) 5V B) 10V C) 15V C1 D) 20V 6 UF + Vs C4 C6 40 V 2 UF 1 UF C2 6 UF

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
