Question: 7. General Draw five polylines .032 wide, using the following absolute coordinates for all five objects. Point Coordinates Point Coordinates Point Coordinates 1 1,1 5

 7. General Draw five polylines .032 wide, using the following absolute

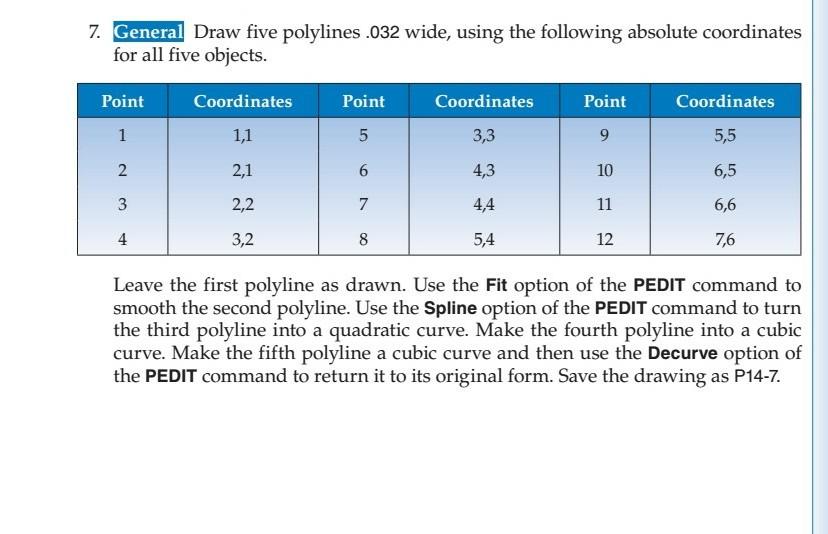

7. General Draw five polylines .032 wide, using the following absolute coordinates for all five objects. Point Coordinates Point Coordinates Point Coordinates 1 1,1 5 3,3 9 5,5 2 2,1 6 4,3 10 6,5 2 3 1 3 2,2 7 4,4 11 6,6 4 3,2 8 8 5,4 12 7,6 Leave the first polyline as drawn. Use the Fit option of the PEDIT command to smooth the second polyline. Use the Spline option of the PEDIT command to turn the third polyline into a quadratic curve. Make the fourth polyline into a cubic curve. Make the fifth polyline a cubic curve and then use the Decurve option of the PEDIT command to return it to its original form. Save the drawing as P14-7

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
