Question: 7 . In the circuit below, the switch has been at position a for t 0 . Initially ( i . e . at t

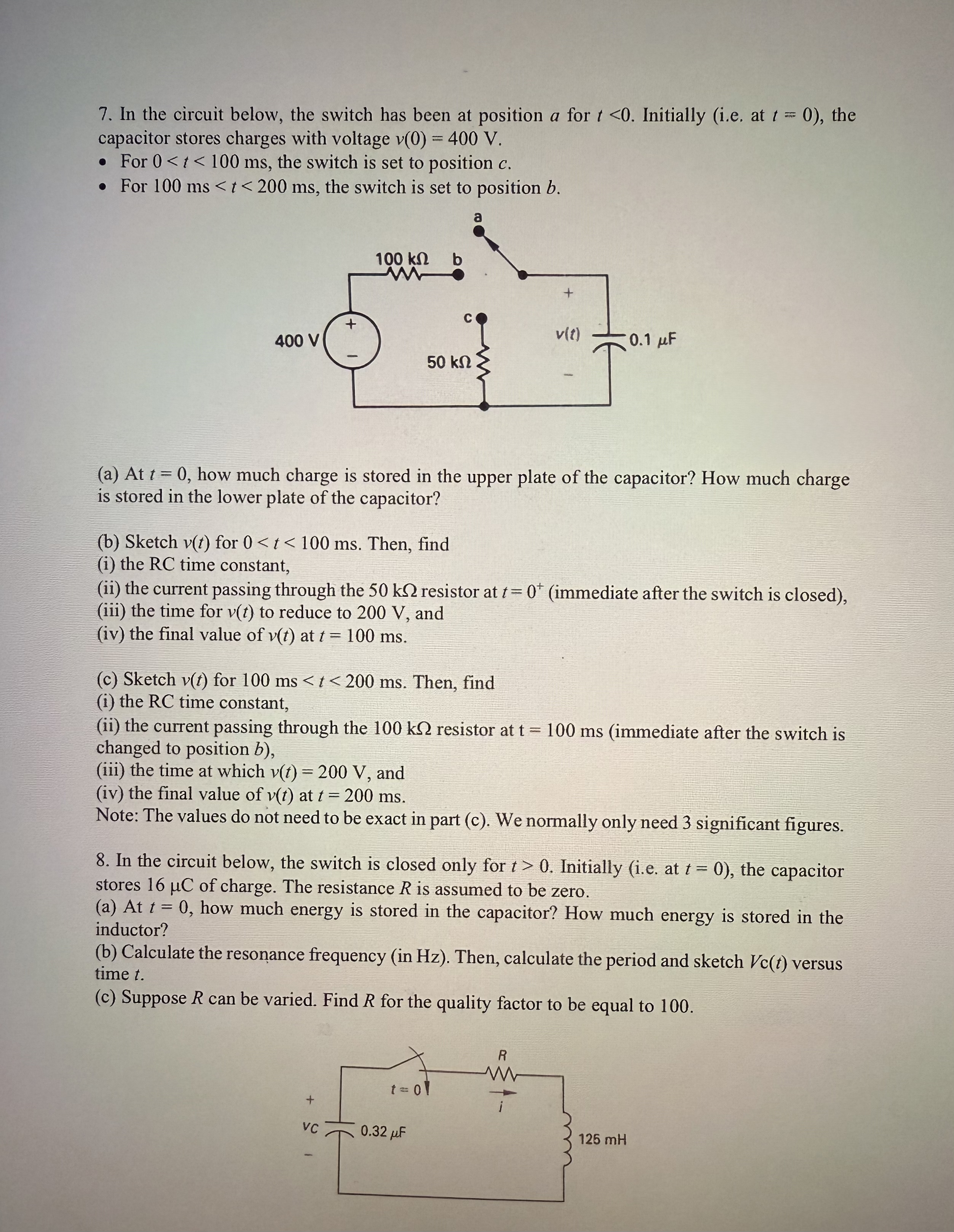

7.In the circuit below, the switch has been at position a for t0. Initially (i.e. at t=0), the capacitor stores charges with voltage v(0)=400V.
For
7 . In the circuit below, the switch has been at

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
