Question: 7. please help find (a) and (b) 7. In the circuit shown. R = 2.60. Ry = 14 02, and R3 = 6.00. 1. R.

7. please help find (a) and (b)

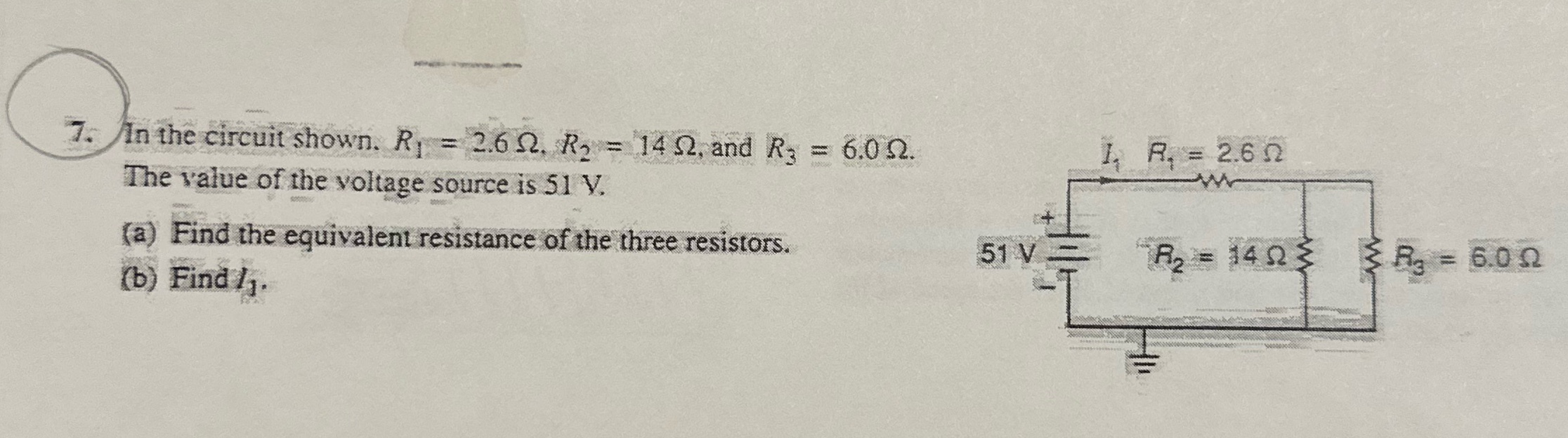

7. In the circuit shown. R = 2.60. Ry = 14 02, and R3 = 6.00. 1. R. = 2.60 The value of the voltage source is 51 V. -Wr (a) Find the equivalent resistance of the three resistors. 51 V R2 = 14 0 Rg = 6.00 (b) Find /1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
