Question: ( 7 points ) The Shaft is supported by a smooth thrust bearing at A and a journal bearing at B

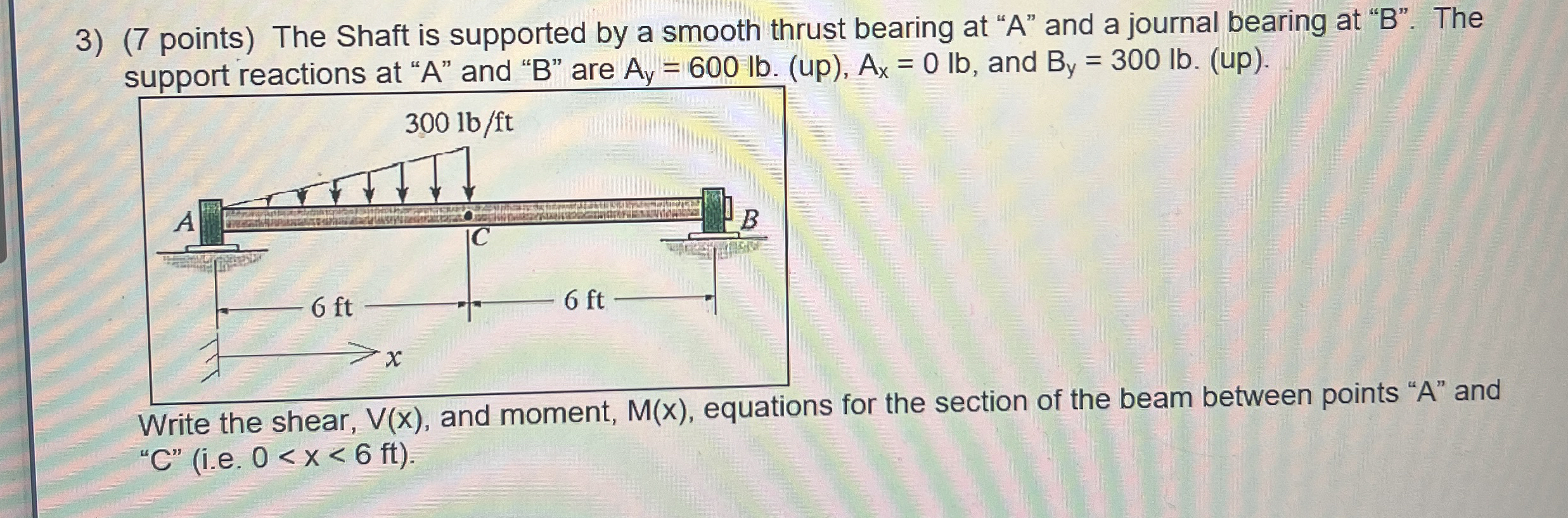

(7 points) The Shaft is supported by a smooth thrust bearing at "A" and a journal bearing at "B". The support reactions at "A" and "B" are Ay=600lb.(up),Ax=0lb, and By=300lb.(up).
Write the shear, V(x), and moment, M(x), equations for the section of the beam between points "A" and "C"(i.e.0
( 7 points ) The Shaft is supported by a smooth

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
