Question: 7.2 Universal Computing Gates The NOR (NOT OR) gate forms a universal logic gate, meaning that any other gate may be formed using only NOR

7.2 Universal Computing Gates The NOR (NOT OR) gate forms a

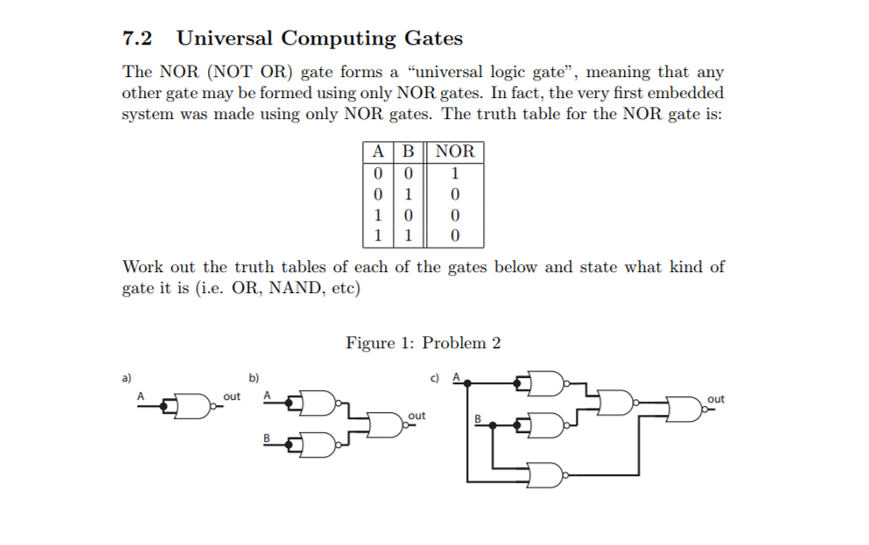

7.2 Universal Computing Gates The NOR (NOT OR) gate forms a "universal logic gate", meaning that any other gate may be formed using only NOR gates. In fact, the very first embedded system was made using only NOR gates. The truth table for the NOR gate is: A B NOR 0 0 1 01 0 Work out the truth tables of each of the gates below and state what kind of gate it is (i.e. OR, NAND, etc) Figure 1: Problem 2 a) b) out A out out

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
