Question: 8 . 1 Determine the internal normal force, shear force, and bending moment at point ( C ) . 8 . 2 Determine

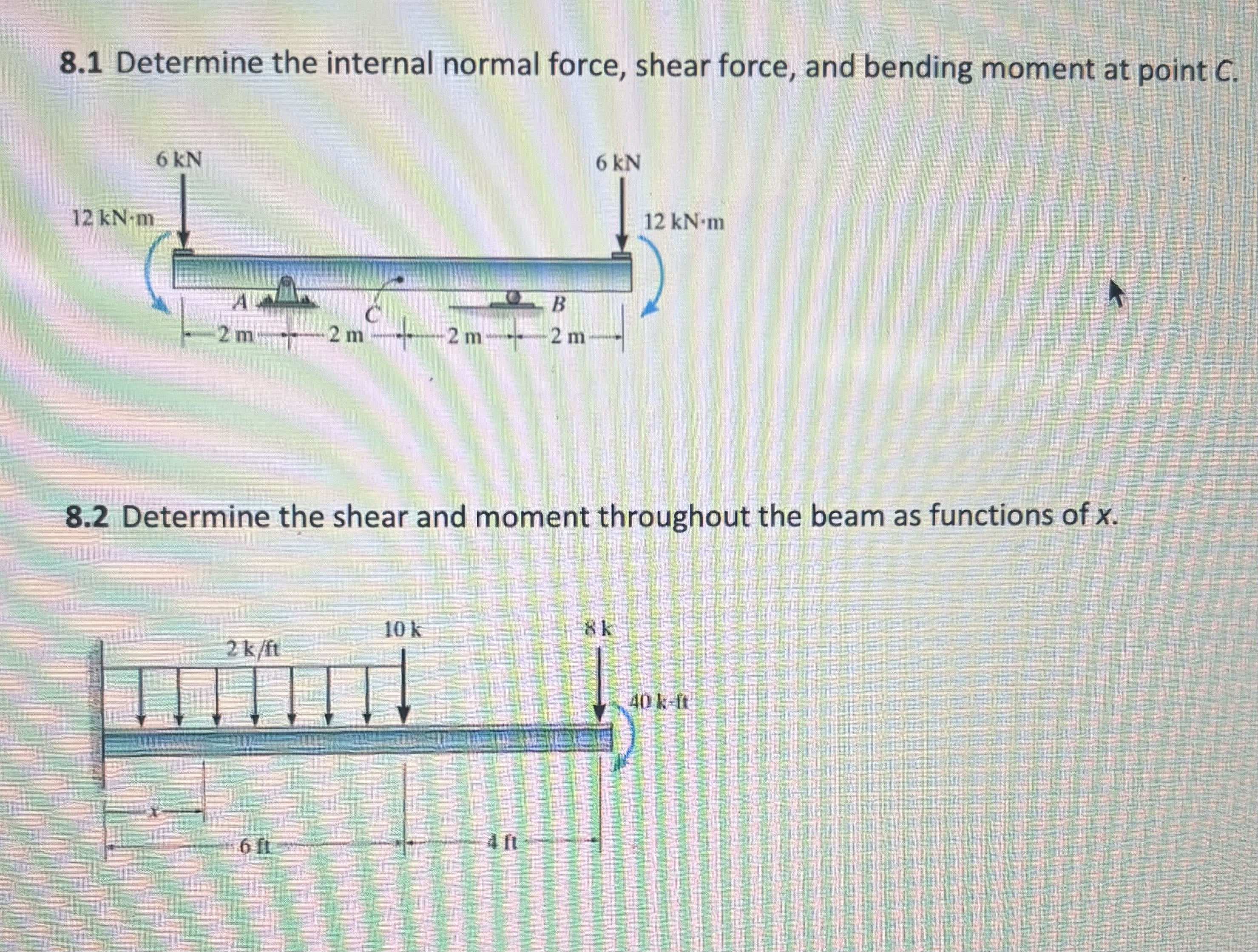

8.1 Determine the internal normal force, shear force, and bending moment at point \( C \).
8.2 Determine the shear and moment throughout the beam as functions of \( x \).
8 . 1 Determine the internal normal force, shear

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
