Question: 8 . 3 Refer to Figure 8 . 2 3 . Given: H 1 = 4 m D 1 = 6 m H 2 =

8.3 Refer to Figure 8.23. Given:
H1=4m
D1=6m
H2=1.5m
D=3.6m
Calculate the seepage loss in m3? day per meter length of the sheet pile Windows (at right angles to the cross section shown). Use Figure 8.12.

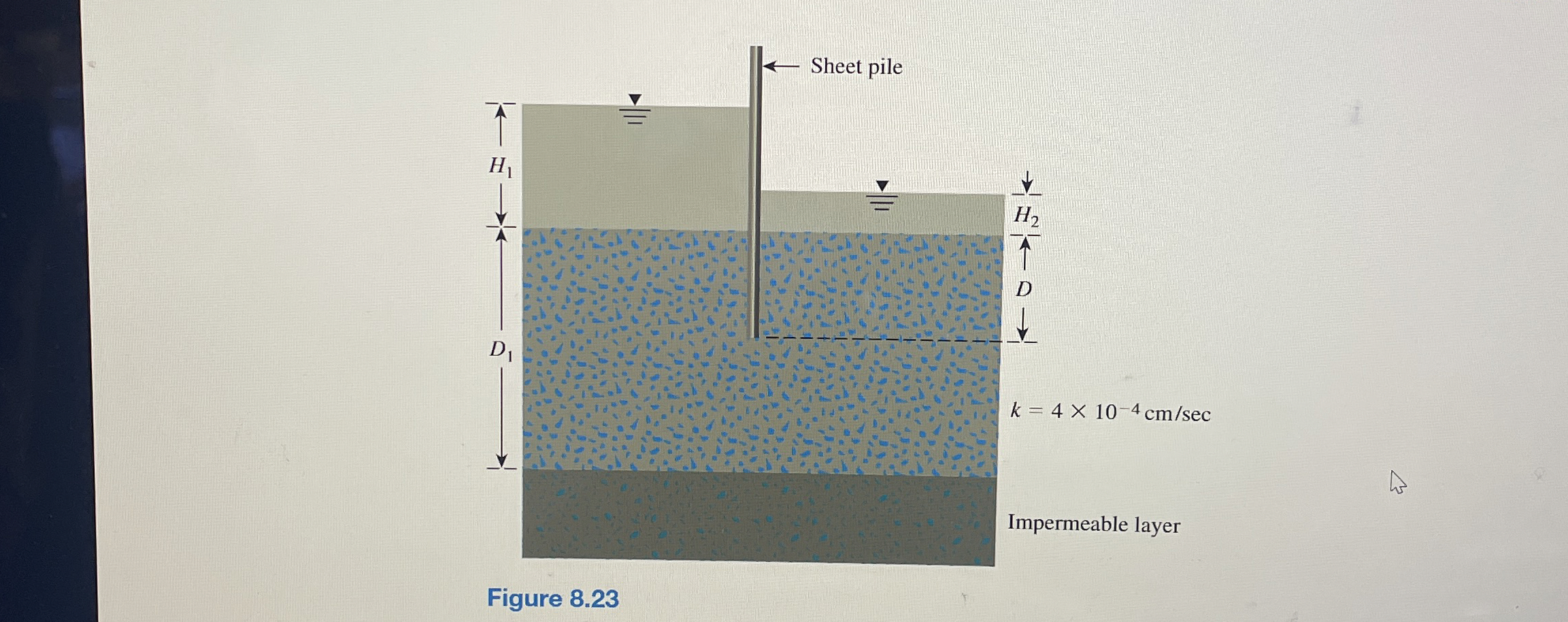

Figure 8.23
8 . 3 Refer to Figure 8 . 2 3 . Given: H 1 = 4 m
