Question: 8 - 4 6 . Use the method of virtual work and determine the vertical deflection at the rocker support D . E I is

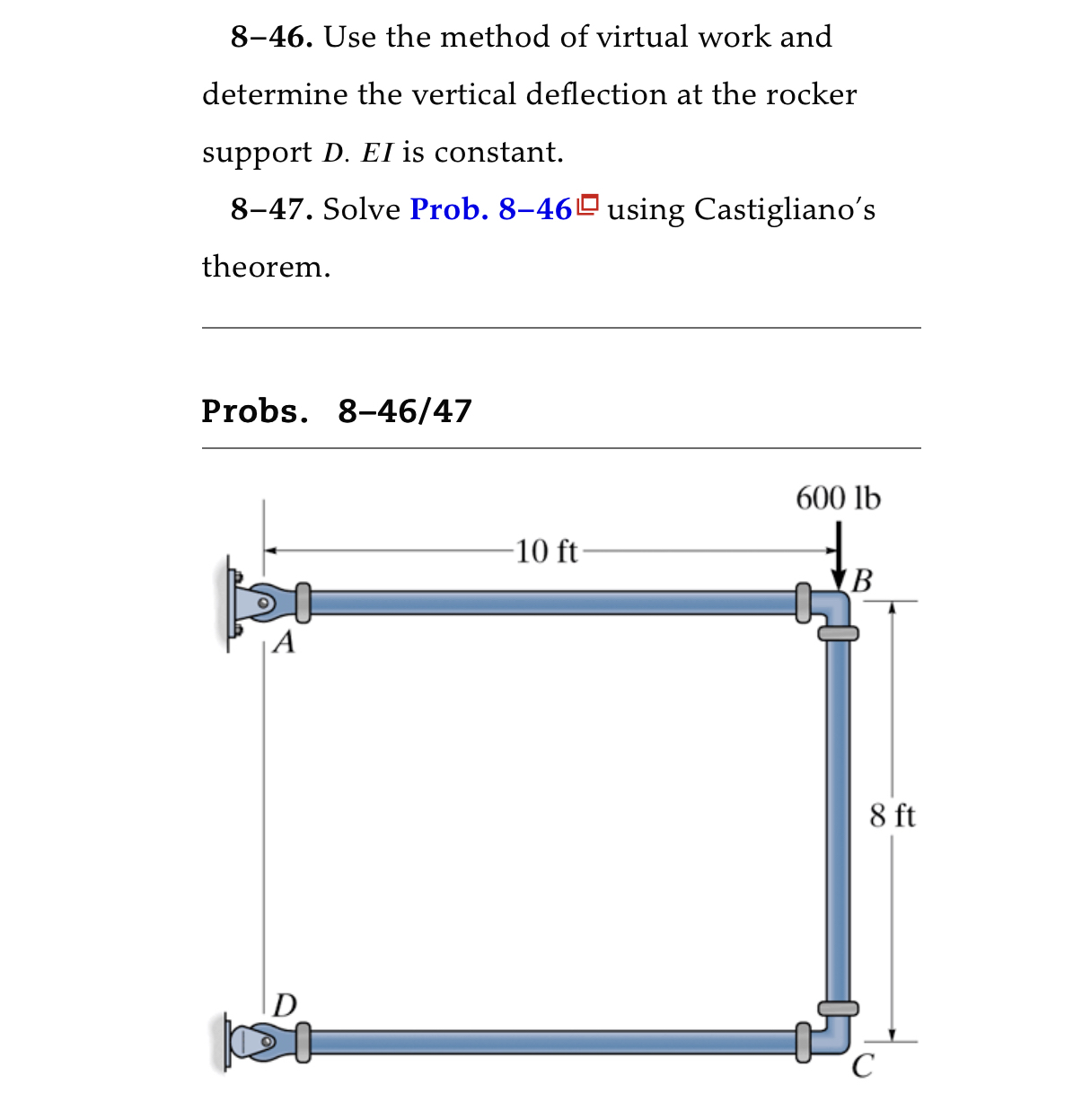

8-46. Use the method of virtual work and determine the vertical deflection at the rocker support D.EI is constant.
8-47. Solve Prob. 8-46 using Castigliano's theorem. q,
Probs. 8-46/47
8 - 4 6 . Use the method of virtual work and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Accounting Questions!

Q:

Use the method of virtual work and determine the vertical deflection at the rocker support D. EI is constant. 600 lb -10 ft 8 ft D.
