Question: 8 - 5 1 Use the method of virtual work and determine the horizontal deflection at C . EI is constant. There is a pin

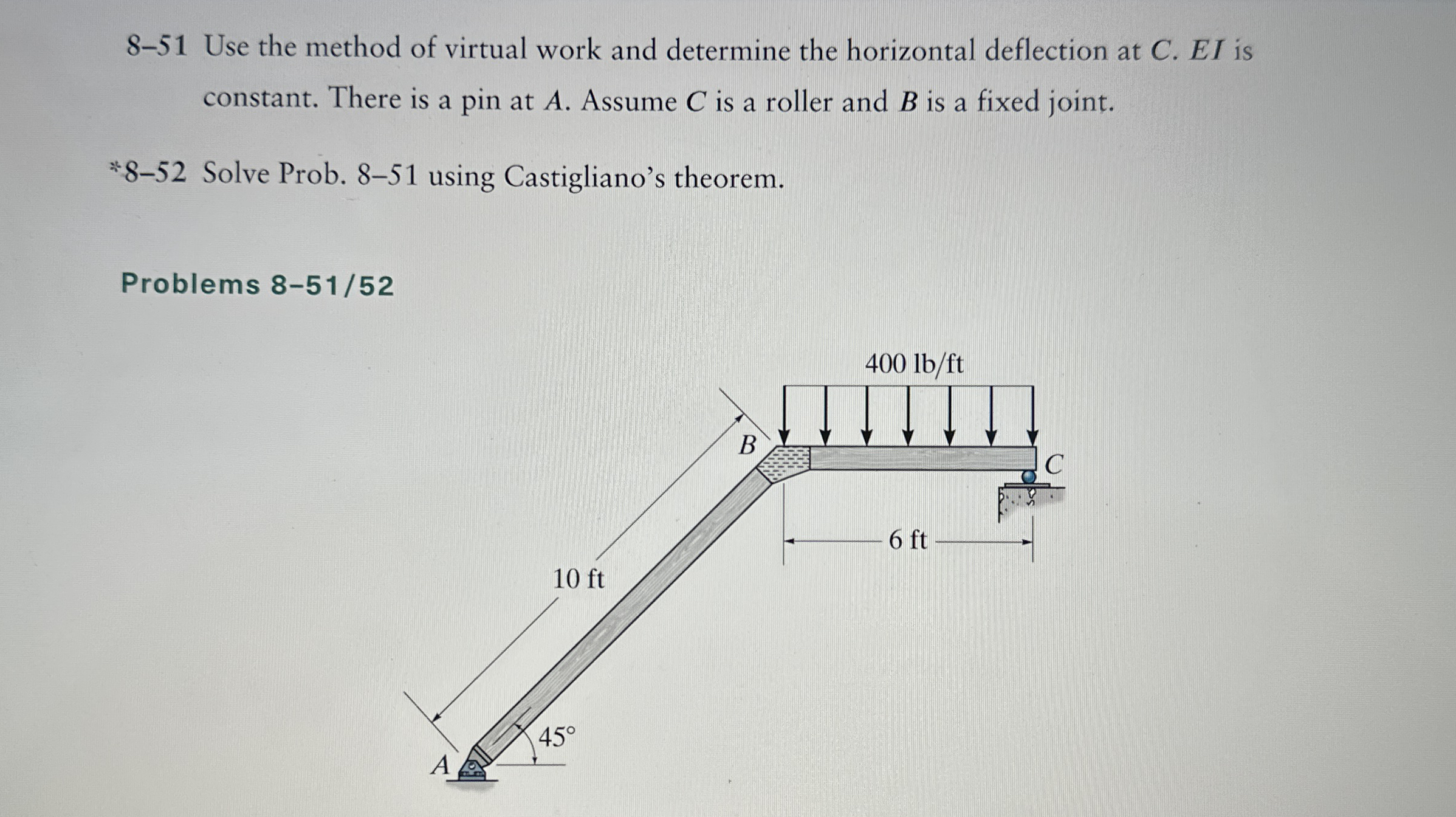

8-51 Use the method of virtual work and determine the horizontal deflection at C. EI is constant. There is a pin at A. Assume C is a roller and B is a fixed joint.
*8-52 Solve Prob. 8-51 using Castigliano's theorem.
Problems 8-51/52
Solve Problem 8-52 only.
8 - 5 1 Use the method of virtual work and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
