Question: 8 . 5 . 3 Find the impedance, ( mathbf { Z } ) , shown in Fig. P 8 . 5

8.5.3 Find the impedance, \(\mathbf{Z}\), shown in Fig. P8.5.3 at a frequency of 60 Hz .

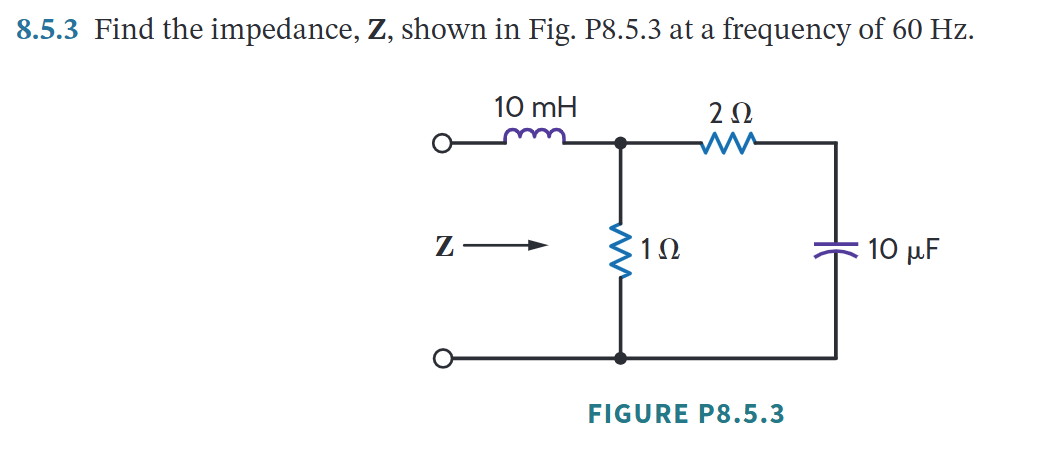

FIGURE P8.5.3
8 . 5 . 3 Find the impedance, \ ( \ mathbf { Z }

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
