Question: - 8 . 6 1 For the current mirror in Fig. P 8 . 6 1 , derive an expression for the current transfer function

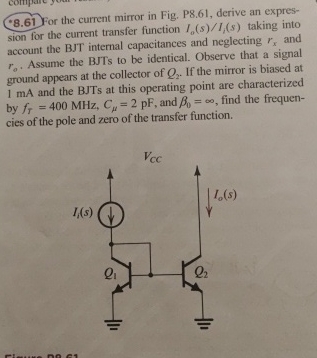

-8.61 For the current mirror in Fig. P8.61, derive an expression for the current transfer function IasIi(s) taking into account the BJT internal capacitances and neglecting rx and r0. Assume the BJTs to be identical. Observe that a signal ground appears at the collector of Q2. If the mirror is biased at 1 mA and the BJTs at this operating point are characterized by fT=400MHz,C=2pF, and 0=, find the frequencies of the pole and zero of the transfer function.
- 8 . 6 1 For the current mirror in Fig. P 8 . 6

Step by Step Solution

There are 3 Steps involved in it
