Question: 8 - 7 . Use the method of virtual work and determine the vertical displacement of joint H . Each steel member has a cross

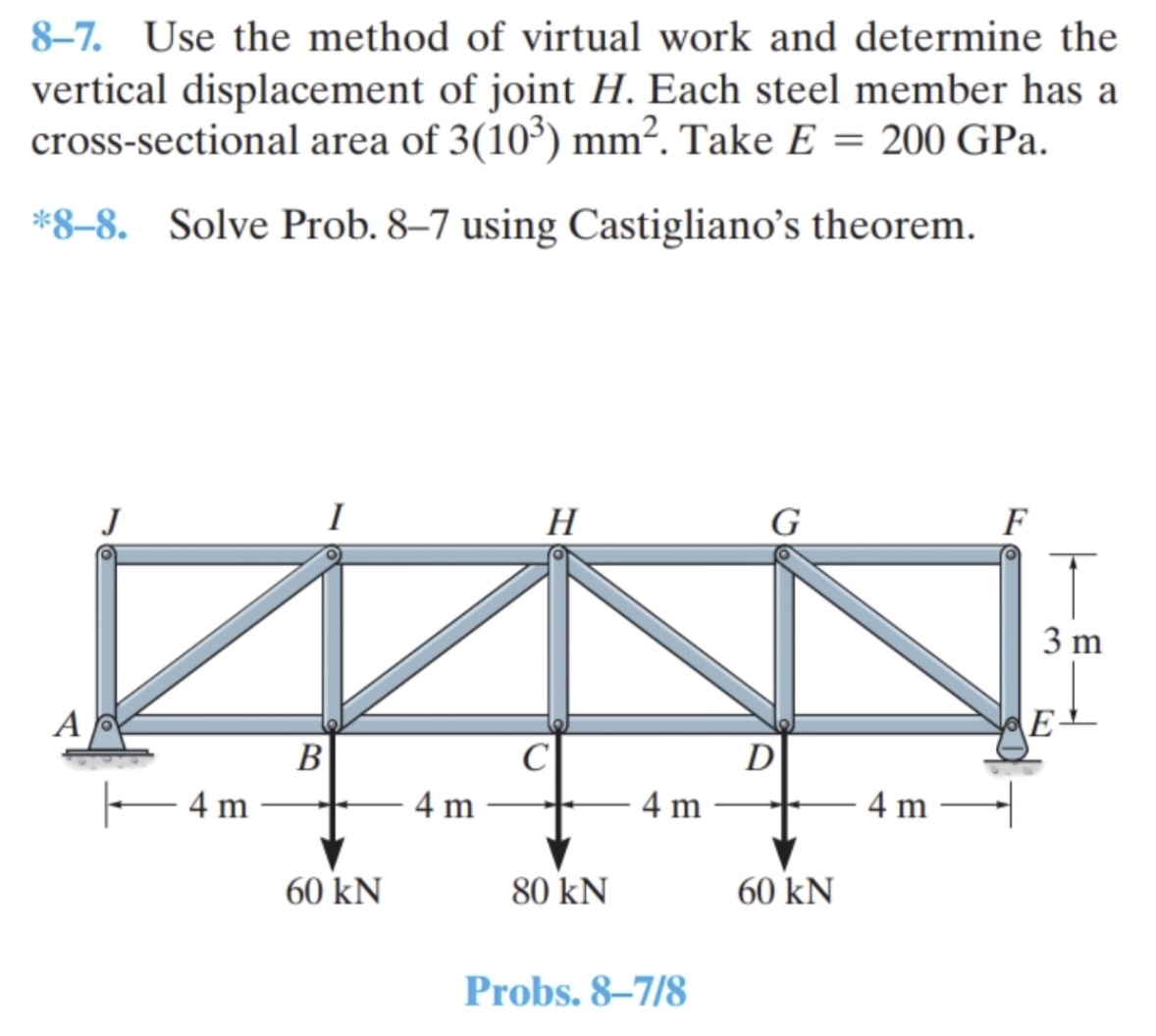

8-7. Use the method of virtual work and determine the vertical displacement of joint H. Each steel member has a cross-sectional area of 3(103)mm2. Take E=200GPa.
8 - 7 . Use the method of virtual work and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

the method of virtual work. The principle of virtual work, also referred to as the unitload method, provides a method for determining the slope or displacement at a specific point in a structure. For...

Q:

Method of Virtual Work: Trusses be determined using the equation 1 * = ? ? n 2 v A E , where 1 is the external virtual unit load acting on the truss joint in the direction of , n is the internal...

Q:

nal virtual unit load acting on the truss joint in the if , n is the internal virtual normal force in a truss aused by the external virtual unit load, is the external acement in the desired direction...

Q:

Please solve A B and C . Revie Consider the steel truss shown in ( Figure 1 ) to answer Parts A , B , and C below, where P 1 = 2 0 k N and P 2 = 5 2 k N . The cross - sectional area of each member is...

Q:

Consider the steel truss shown in ( Figure 1 ) to answer Parts A , B , and C below, where P 1 = 3 0 k N and P 2 = 5 0 k N . The crosssectional area of each member is A = 4 0 0 m m 2 , and E = 4 0 0...

Q:

Review Consider the steel truss shown in ( Figure 1 ) to answer Parts A , B , and C below, where P 1 = 3 2 k N and P 2 = 4 2 k N . The cross - sectional area of each member is A = 2 5 0 m m 2 , and E...

Q:

Use the method of virtual work and determine the vertical displacement at point D . Each member has a cross - sectional area of 3 0 0 m m 2 , E = 2 0 0 GPa. Member GF and FE are subjected to increase...

Q:

8 - 1 5 . Determine the vertical displacement of joint C . Assume the members are pin connected at their end points. Take A = 2 0 0 m m 2 and E = 2 0 0 GPa for each member. Use the method of virtual...

Q:

Virtual Work: Trusses ( 2 0 Pts ) Use the method of virtual work and determine the vertical displacement of joint B for the truss below. Member A B experiences a temperature change of T = 1 0 C and...

Q:

Use the method of virtual work and determine the vertical displacement of joint H. Each steel member has a cross-sectional area of 4.5 in 2 . Take E = 29(10 3 ) ksi. A 12 ft- B 6 k 12 ft- H 8 k -12...
