Question: ( 8 points ) A beam carries a distributed load given by w ( x ) = 2 0 2 4 e - 0 .

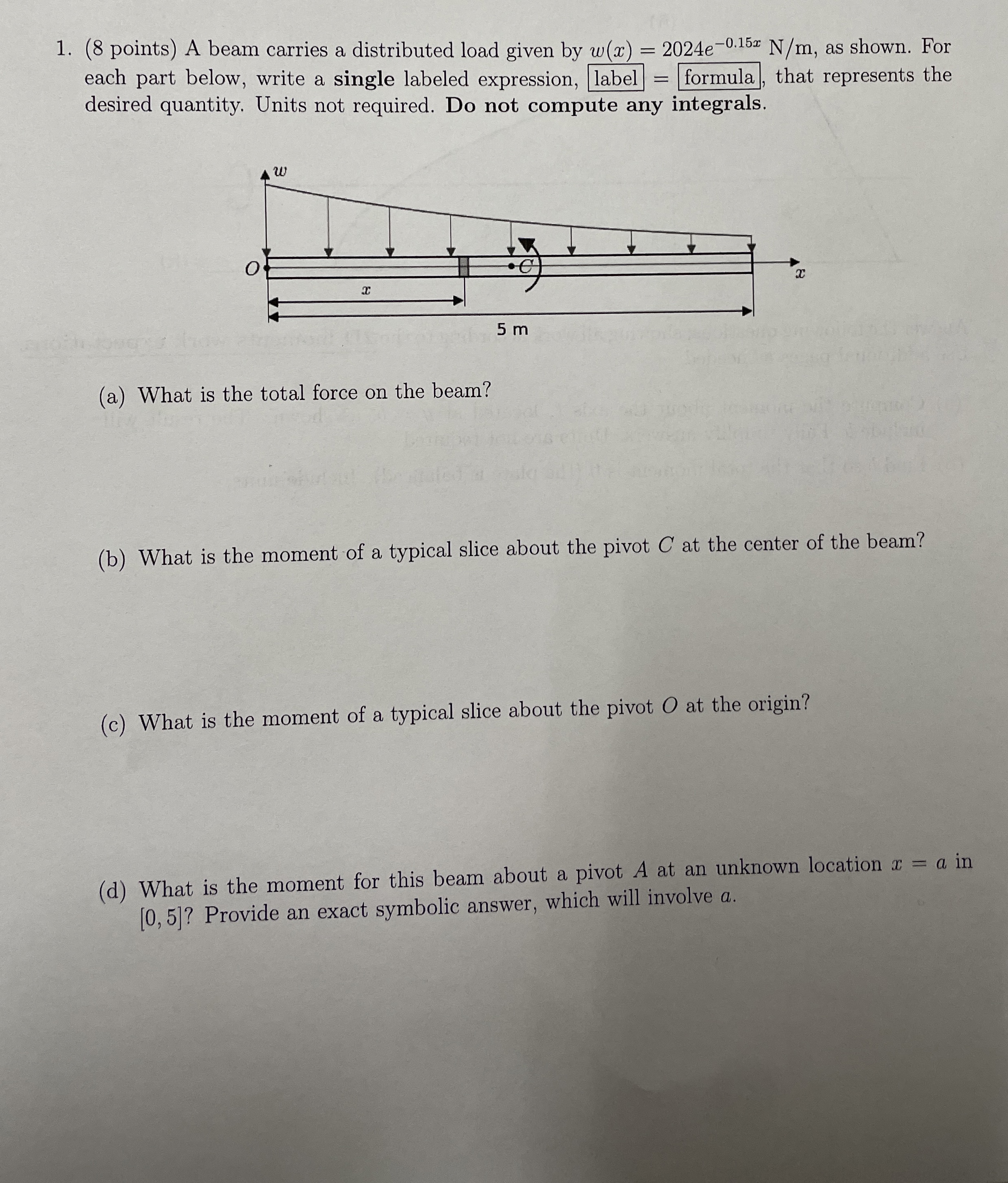

(8 points) A beam carries a distributed load given by w(x)=2024e-0.15xNm, as shown. For each part below, write a single labeled expression, label = formula, that represents the desired quantity. Units not required. Do not compute any integrals.
(a) What is the total force on the beam?
(b) What is the moment of a typical slice about the pivot C at the center of the beam?
(c) What is the moment of a typical slice about the pivot O at the origin?
(d) What is the moment for this beam about a pivot A at an unknown location x=a in 0,5? Provide an exact symbolic answer, which will involve a.
( 8 points ) A beam carries a distributed load
