Question: ( 8 points ) Consider the truss supporting two, 1 kN loads. It is supported by a roller at A and a pin

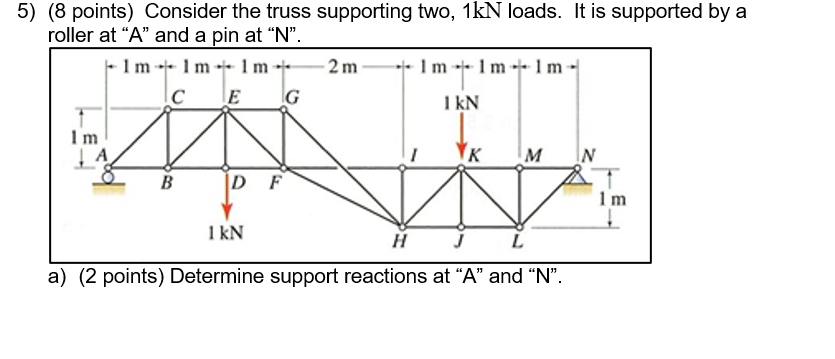

(8 points) Consider the truss supporting two, 1 kN loads. It is supported by a
roller at "A" and a pin at " N ".
a)(2 points) Determine support reactions at "A" and "N".
b) Determine the force in member GH. State whether it is in tension or compression. Member GH is not connected to member FI. Hint: Id use the method of sections. If you try to use the method of joints, the problem will take an inordinate amount of time to complete.
( 8 points ) Consider the truss supporting two, 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
