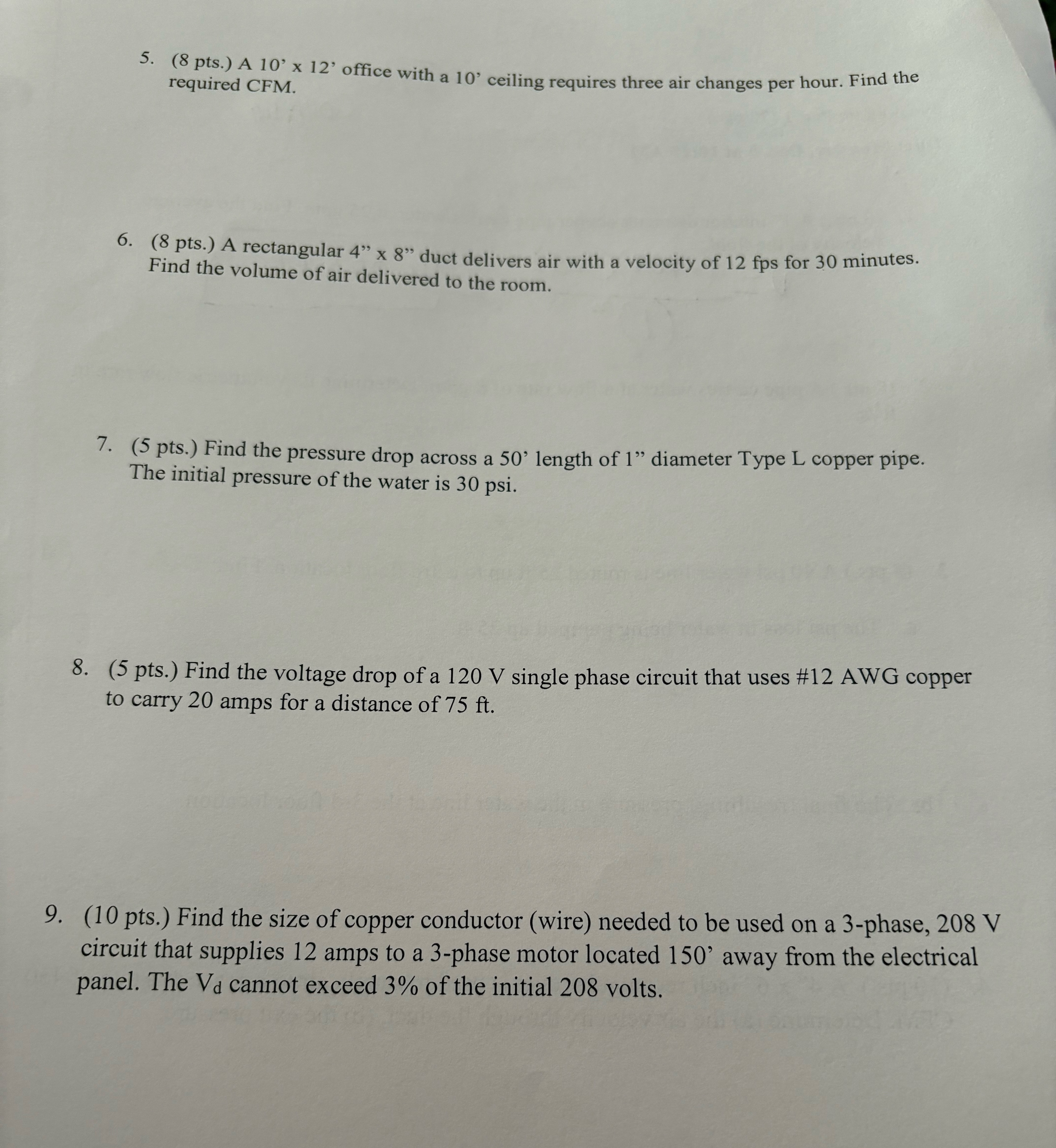

Question: ( 8 pts . ) A 1 0 ' 1 2 ' office with a 1 0 ' ceiling requires three air changes per hour.

(8 pts.) A 10'12' office with a 10' ceiling requires three air changes per hour. Find the required CFM.
(8 pts.) A rectangular 4"8" duct delivers air with a velocity of 12 fps for 30 minutes. Find the volume of air delivered to the room.
(5 pts.) Find the pressure drop across a 50' length of 1" diameter Type L copper pipe. The initial pressure of the water is 30 psi .
(5 pts.) Find the voltage drop of a 120 V single phase circuit that uses #12 AWG copper to carry 20 amps for a distance of 75 ft .
(10 pts.) Find the size of copper conductor (wire) needed to be used on a 3-phase, 208 V circuit that supplies 12 amps to a 3-phase motor located 150' away from the electrical panel. The Vd cannot exceed 3% of the initial 208 volts.
Show all work for each question.
