Question: 9 - 5 . Use the method of virtual work and determine the vertical displacement of point B . Each A - 3 6 steel

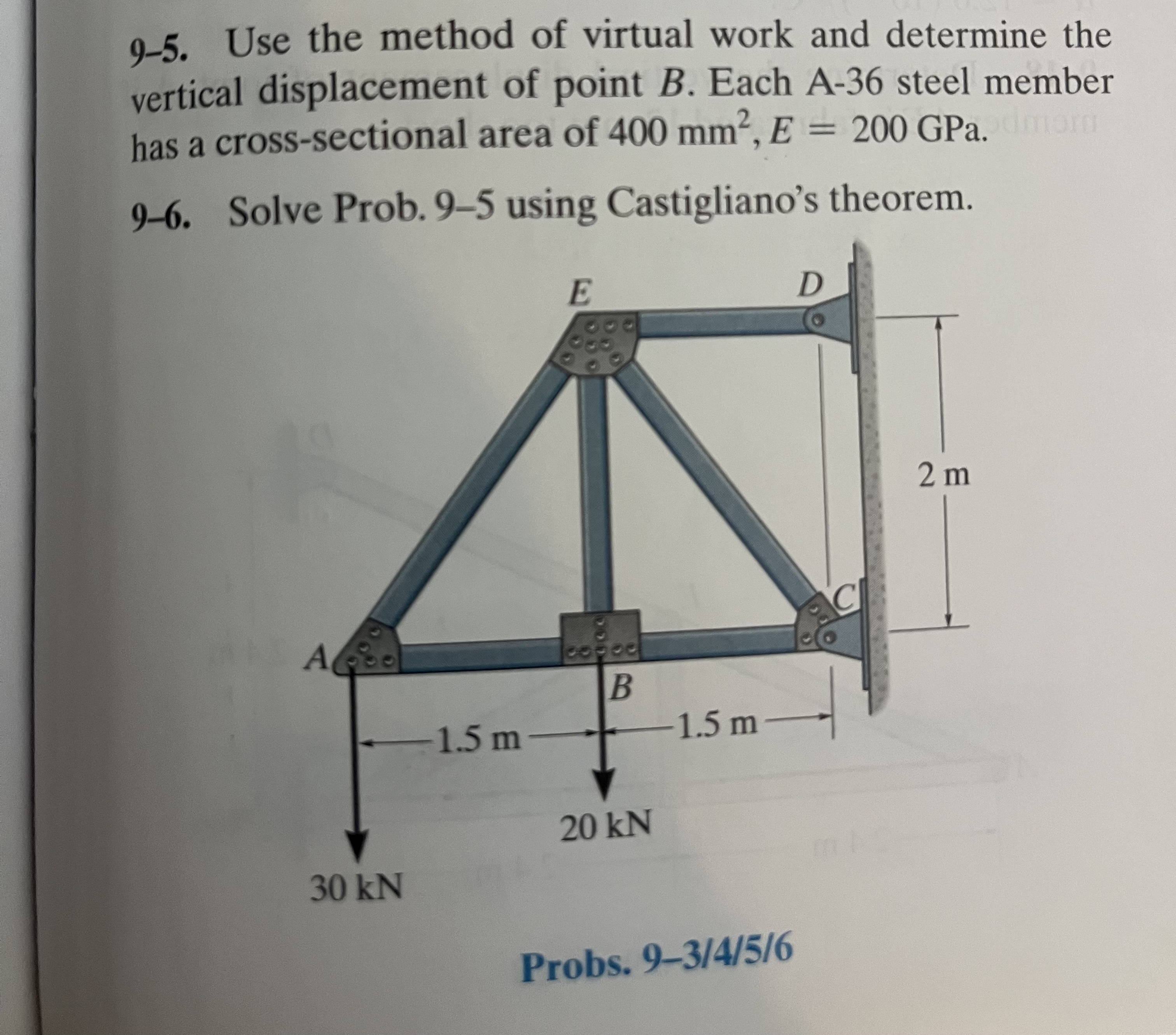

9-5. Use the method of virtual work and determine the vertical displacement of point B. Each A-36 steel member has a cross-sectional area of 400mm2,E=200GPa.
9-6. Solve Prob. 9-5 using Castigliano's theorem.
Find 9-6 only !!
9 - 5 . Use the method of virtual work and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
