Question: 9 . 6 9 through 9 . 7 2 For the beam and loading shown, determine ( a ) the deflection at C , (

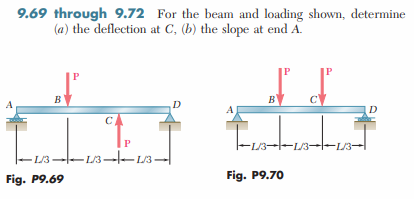

9.69 through 9.72 For the beam and loading shown, determine
(a) the deflection at C,(b) the slope at end A.
Fig. P9.69 Please solve it using superposition method,Therefore no integration, Then please solve all Figures, You always solve just one,Thank you
9 . 6 9 through 9 . 7 2 For the beam and loading

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
