Question: 9 . 7 For the beam and loading shown, determine ( a ) the equation of the elastic curve for portion B C of the

9.7 For the beam and loading shown, determine (a) the equation of the elastic curve for portion BC of the beam, (b) the deflection at midspan, (c) the slope at B.

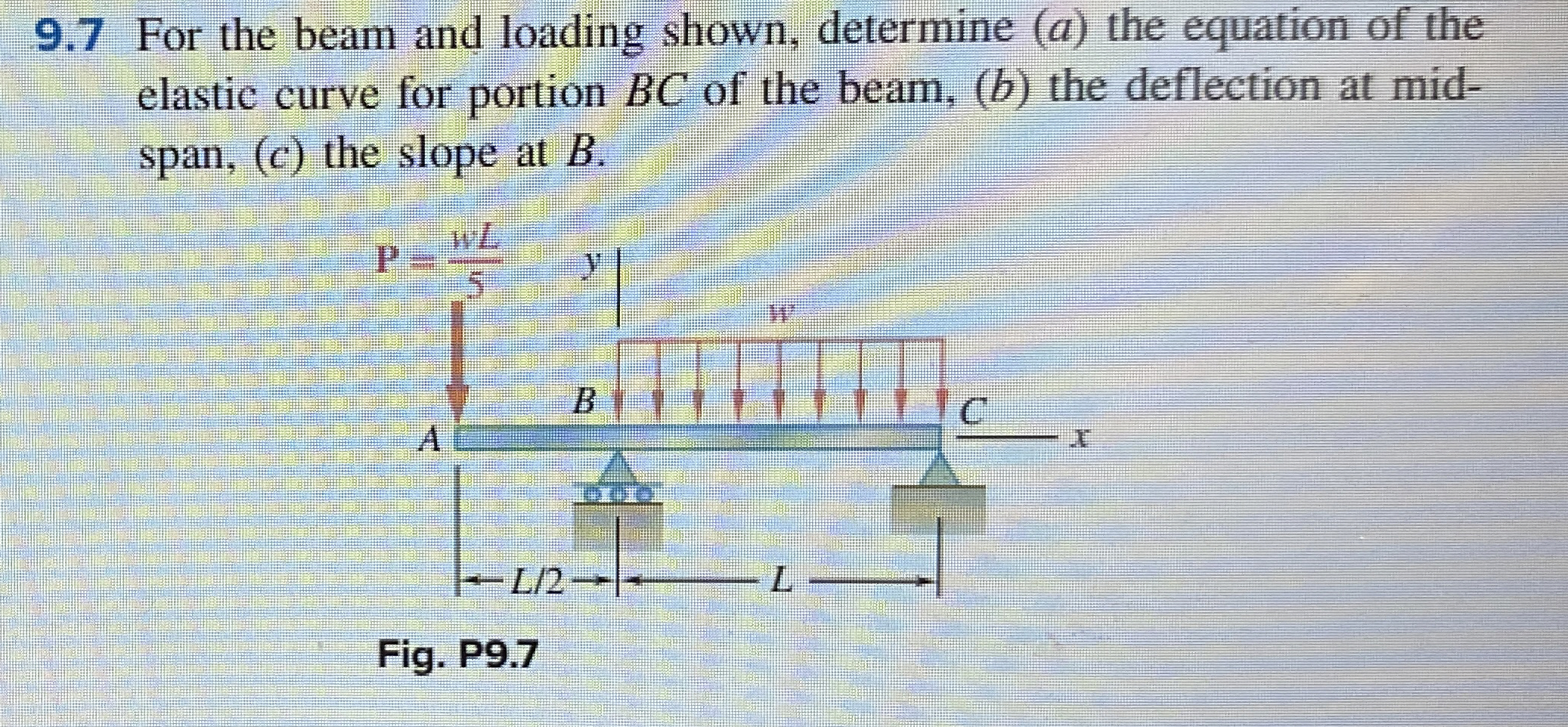

Fig. P9.7
9 . 7 For the beam and loading shown, determine (

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Fig. P9.5 14/2 9.5 and 9.6 For the cantilever beam and loading shown, determine (a) the equation of the elastic curve for portion AB of the beam, (b) the deflection at B, (c) the slope at B. 31 Mc= B...

Q:

For the beam and loading shown, determine (a) the equation of the elastic curve, (b) the slope at end A, (c) the maximum deflection.

Q:

Solve the following problem using the double integration method. All work must be shown for full credit. Use only the resources provided. TYPE only the answers to part b) and c). For the beam and...

Q:

For the loading shown, determine a. The equation of the elastic curve for portion AB of the beam The slope at A. b. c. The slope at B. 3 kN/m 6 m B 3 m C x

Q:

Problem 3. (25 points) For the cantilever beam and loading shown, (a) determine the equation of the elastic curve, (b) determine the slope at the free end, (c) determine the deflection of the free...

Q:

9.1 through 9.4 For the loading shown, determine (a) the equation of the elastic curve for the cantilever beam AB, (b) the deflection at the free end, (c) the slope at the free end. " A Mo Fig. P9.2...

Q:

2) For the beam and loading shown below, determine the reactions at the supports RA, RB, and Rc. 3M o Ans: R. = MOT. RB 5MOT, Rc= 2L 2L L Mo A B L/2 C L/2Maximum Beam and Loading Elastic Curve...

Q:

For the cantilever beam and loading shown in Figure Q3(b), determine: i) The equation of the elastic curve for portion AB of the beam. ii) The deflection and slope at B. wL? Mc B C |-x A -L- Figure...

Q:

2) For the beam and loading shown below, determine (a) the equation of the elastic curve, y(x), for portion AB of the beam, (b) the slope at point A, 6A, (c) the slope at point B, 03. 4 L 3 L3 3 x x...

Q:

For the cantilever beam and loading shown in Figure Q3(b), determine: i) The equation of the elastic curve for portion AB of the beam. ii) The deflection and slope at B. wL? Mc B C |-x A -L- Figure...
