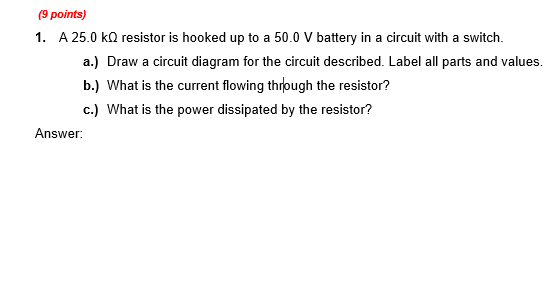

(9 points) 1. A 25.0 k{l resistor is hooked up to a 50.0 V battery in a circuit with a switch. a.) Draw a circuit diagram for the circuit described. Label all parts and values. b.) What is the current flowing thriough the resistor? c.) What is the power dissipated by the resistor? Answer: (8 points) 2. A10.0 Q resistor is hooked up in series with an 8.0 O resistor followed by a 27.0 (1 resistor. The circuit is powered by a 12.0 \\V battery. a.) Draw a labeled circuit diagram for the circuit described. b.) Calculate the equivalent resistance. c.) Calculate the voltage drop across each resistor in the circuit. Answer: {8 points) 3. A 9.0V battery is hooked up with three resistors (R1, H2, R3) in parallel with resistances of 200,500, and 10.0 0, respectively. a.) Draw alabeled circuit diagram for the circuit described. b.) Calculate the equivalent resistance. .) Calculate the current passing through each resistor in the circuit
