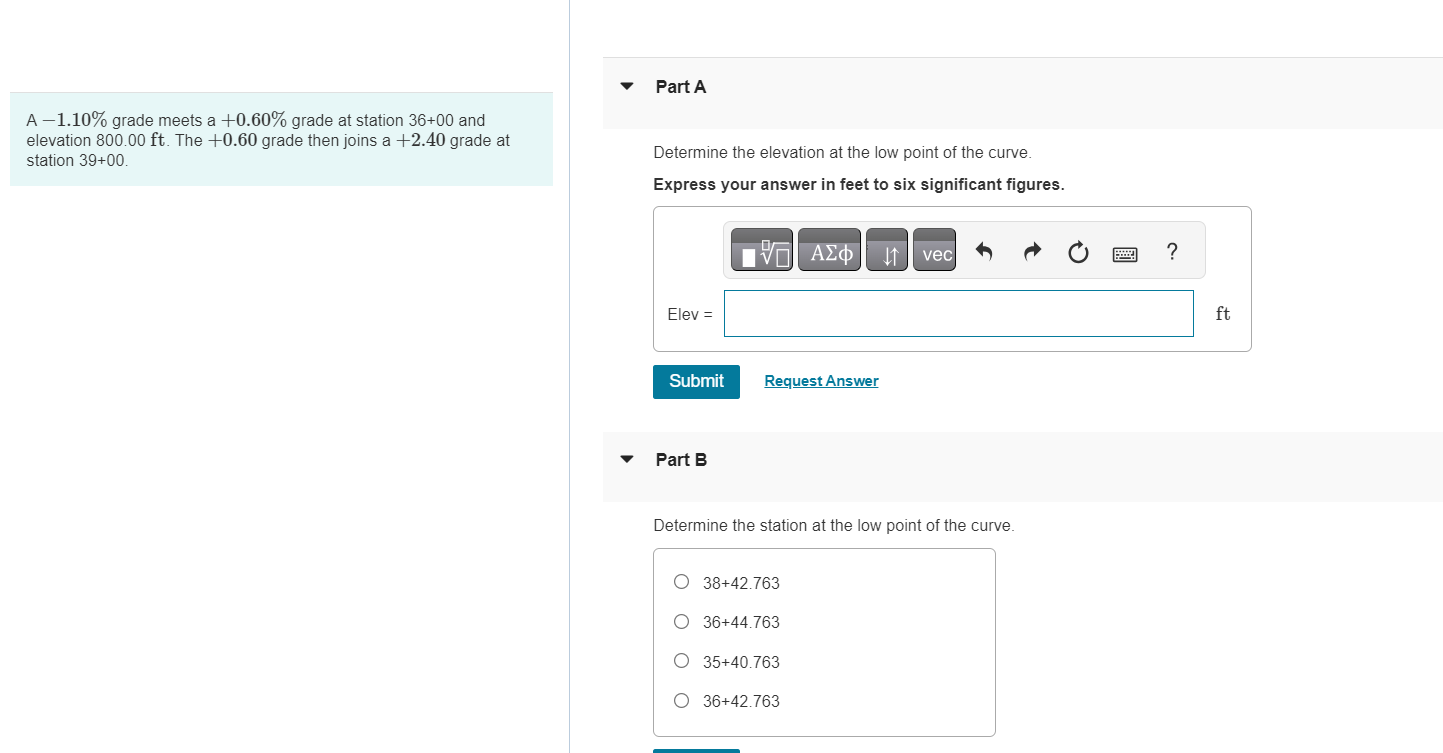

Question: A - 1 . 1 0 % grade meets a + 0 . 6 0 % grade at station 3 6 + 0 0 and

A -1.10% grade meets a +0.60% grade at station 36+00 and
elevation 800.00ft. The +0.60 grade then joins a +2.40 grade at
station 39+00.
Part A
Determine the elevation at the low point of the curve.
Express your answer in feet to six significant figures.
Elev =
ft
Part B
Determine the station at the low point of the curve.
38+42.763
36+44.763
35+40.763
36+42.763
A - 1 . 1 0 % grade meets a + 0 . 6 0 % grade at
