Question: A 1 5 0 - kg uniform rectangular plate is supported in the position shown in the figure by hinges A and B and by

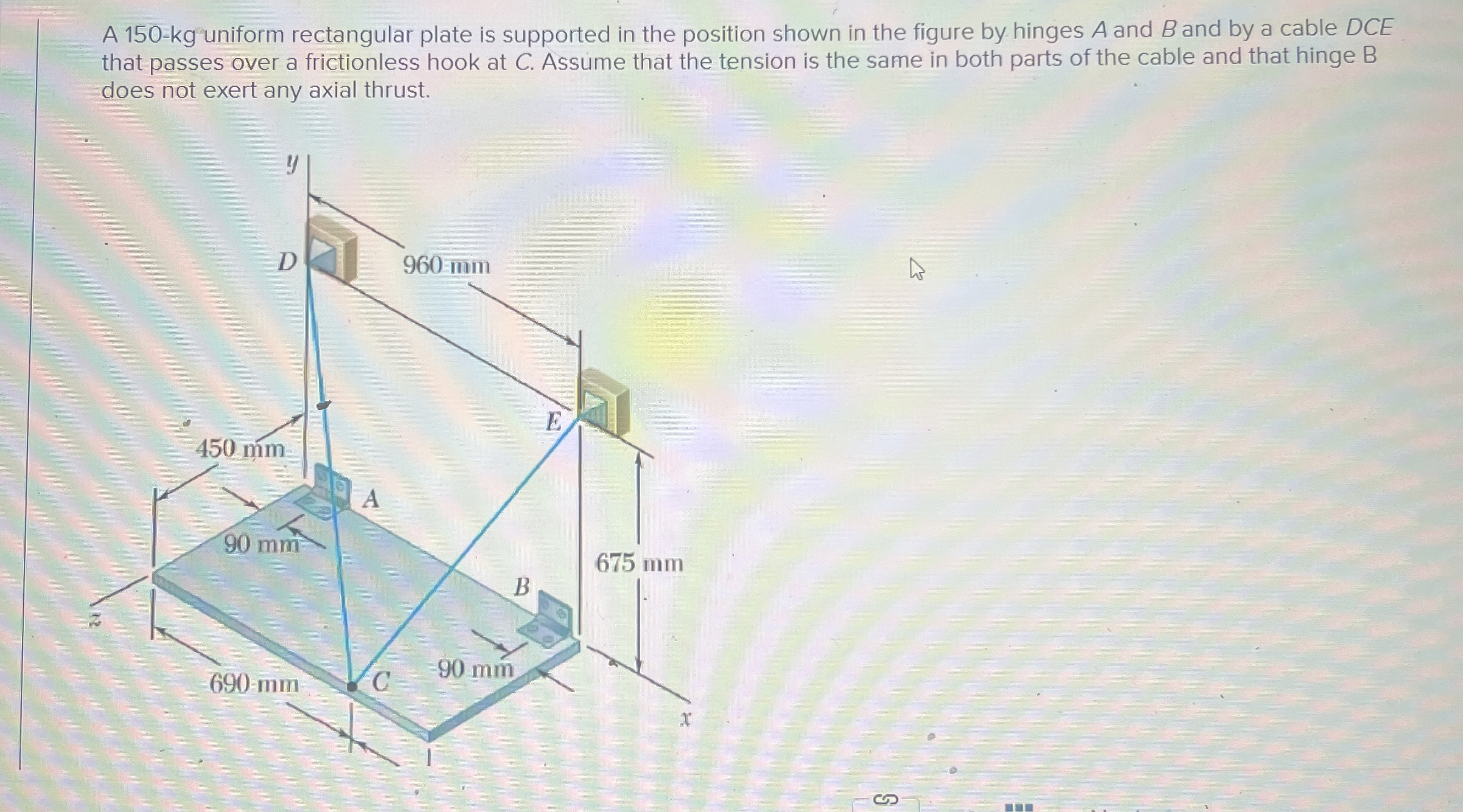

A 150-kg uniform rectangular plate is supported in the position shown in the figure by hinges A and B and by a cable DCE
that passes over a frictionless hook at C. Assume that the tension is the same in both parts of the cable and that hinge B
does not exert any axial thrust.
Determine the reactions at A and B
A 1 5 0 - kg uniform rectangular plate is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
