Question: A 1 . 5 m wide quarter circle gate shown is intended to hold 9 m of water. A force P is used to hold

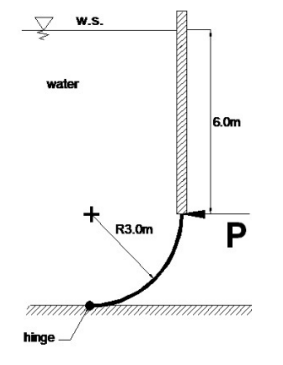

A 1.5 m wide quarter circle gate shown is intended to hold 9 m of water. A force P is used to hold the gate in place.
1.Determine the nearest value horizontal component of the hydrostatic force (kN).
2. Determine the nearest value vertical component of the hydrostatic force (kN).
3. Find the location of the hydrostatic force.
A 1 . 5 m wide quarter circle gate shown is

Step by Step Solution

There are 3 Steps involved in it
