Question: A 1 5 mm diameter solid steel shaft supports loads P = 6 0 0 N and Q = 1 0 0 0 N as

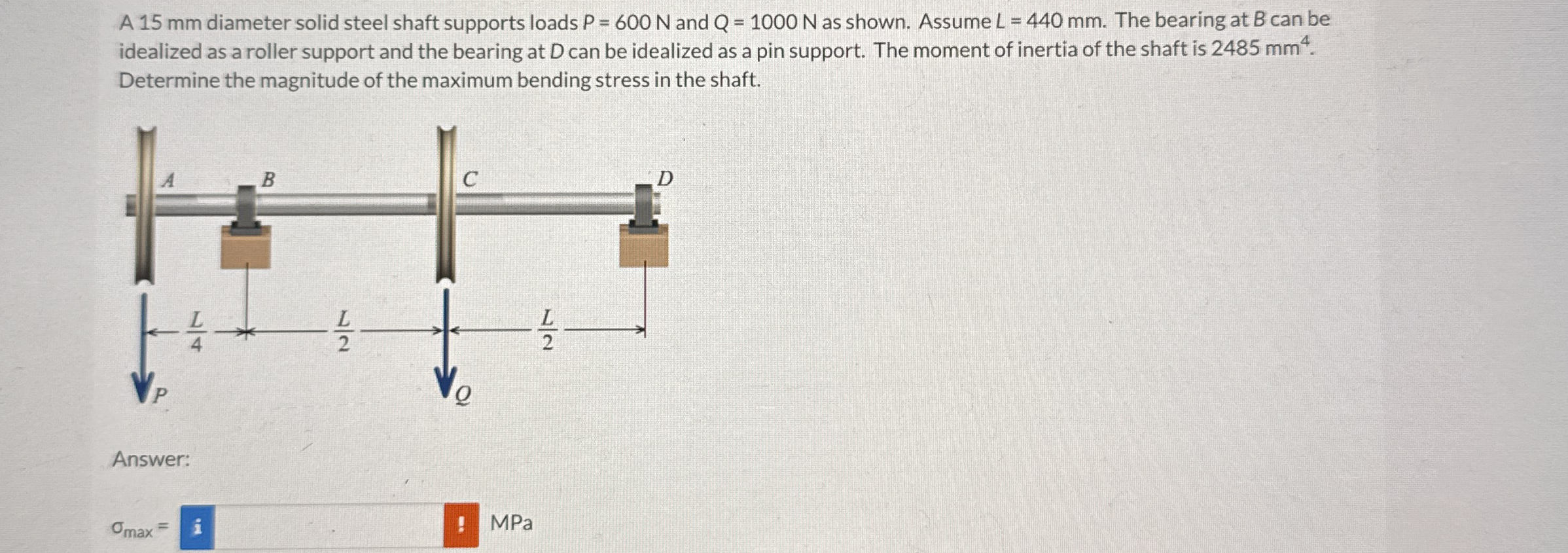

A 15 mm diameter solid steel shaft supports loads P=600N and Q=1000N as shown. Assume L=440mm. The bearing at B can be idealized as a roller support and the bearing at D can be idealized as a pin support. The moment of inertia of the shaft is 2485mm4. Determine the magnitude of the maximum bending stress in the shaft.
Answer:
max= MPa
A 1 5 mm diameter solid steel shaft supports

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
