Question: A 1 , 8 5 0 - N load Q is applied to the pulley C , which can roll on the cable ACB. The

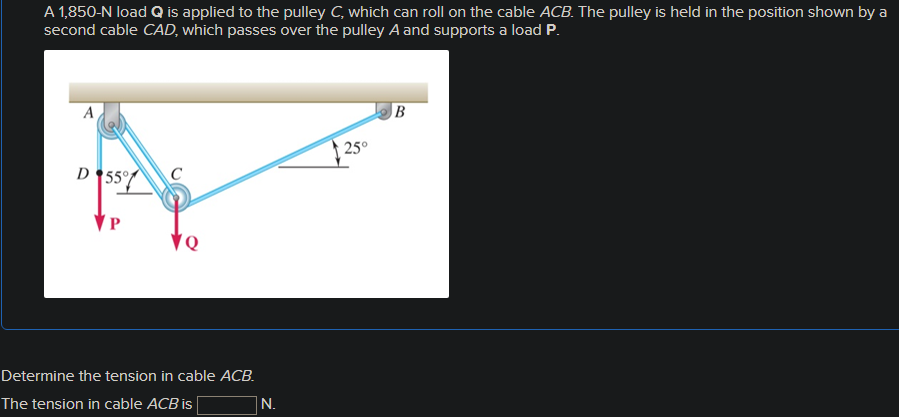

A 1,850-N load Q is applied to the pulley C, which can roll on the cable ACB. The pulley is held in the position shown by a
second cable CAD, which passes over the pulley A and supports a load P.
Determine the tension in cable ACB.
The tension in cable ACB is
N
A 1 , 8 5 0 - N load Q is applied to the pulley C
