Question: A 2 0 0 N force is applied as shown to the bracket ABC. Determine the moment that this force exerts about B ( 2

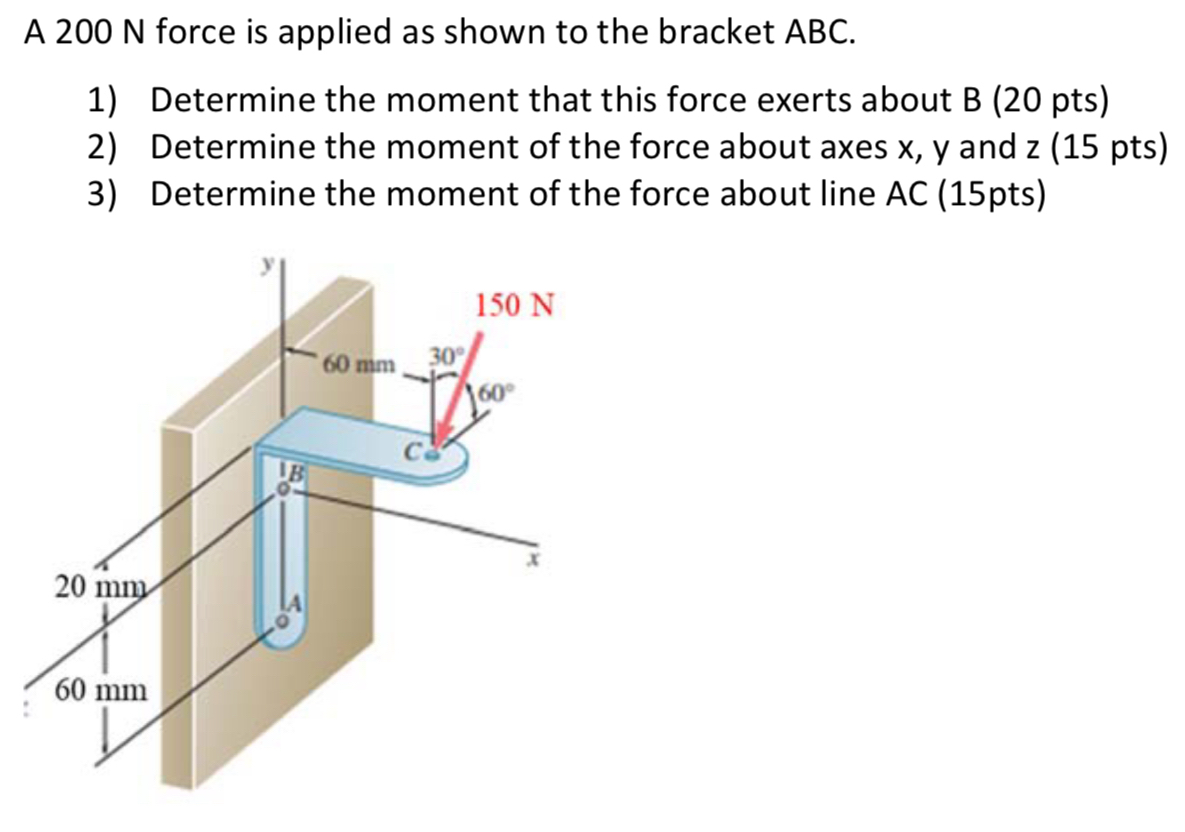

A 200 N force is applied as shown to the bracket ABC.
Determine the moment that this force exerts about B(20 pts)
Determine the moment of the force about axes x,y and z(15 pts)
Determine the moment of the force about line AC(15pts)
A 2 0 0 N force is applied as shown to the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
