Question: A 2 0 8 V , six - pole, Y - connected, 2 5 - hp design class B induction motor is tested in the

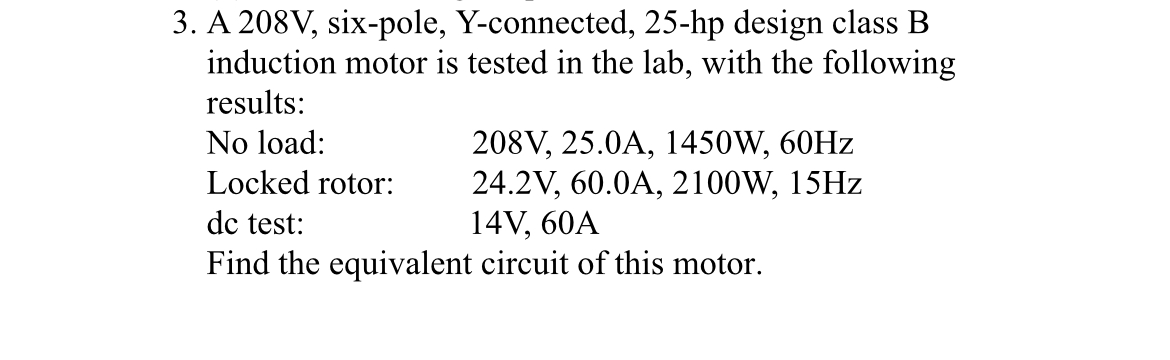

A 208V, six-pole, Y-connected, 25-hp design class B induction motor is tested in the lab, with the following results:
No load: ,208V,25.0A,1450W,60Hz
Locked rotor: ,24.2V,60.0A,2100W,15Hz
dc test: ,14V,60A
Find the equivalent circuit of this motor.
A 2 0 8 V , six - pole, Y - connected, 2 5 - hp

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
