Question: A 2 0 kg rectangular plate is suspended by two supports A and B and is maintained in the position shown in the figure, thanks

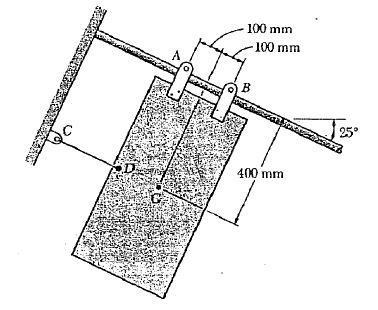

A 20 kg rectangular plate is suspended by two supports A and B and is maintained in the position shown in the figure, thanks to the thread CD. Knowing that the coefficient of kinetic friction between each support and the inclined rod is C =0.15, determine the normal component of the reaction at B immediately after the son is cut.
A 2 0 kg rectangular plate is suspended by two

Step by Step Solution

There are 3 Steps involved in it
