Question: A 2 3 - in . vertical rod C D is welded to the midpoint C of trie 5 0 - in . rod A

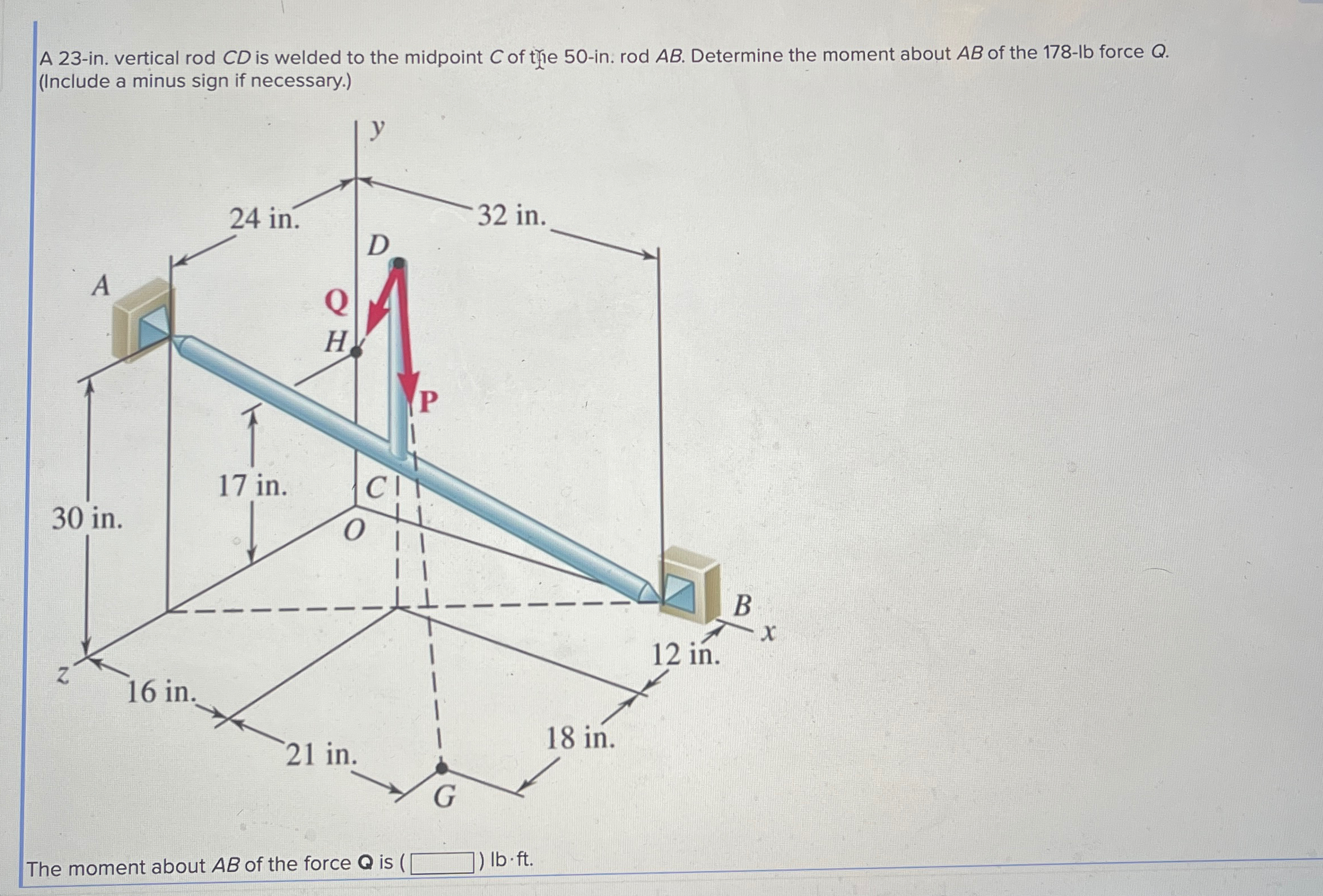

A 23-in. vertical rod CD is welded to the midpoint C of trie 50-in. rod AB. Determine the moment about AB of the 178- lb force Q.(Include a minus sign if necessary.)
The moment about AB of the force Q is (
lb *ft.
A 2 3 - in . vertical rod C D is welded to the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
