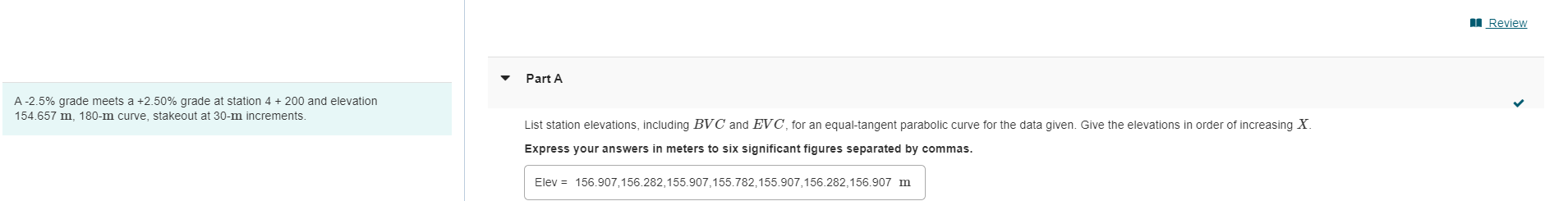

Question: A - 2 . 5 % grade meets a + 2 . 5 0 % grade at station 4 + 2 0 0 and elevation

A -2.5% grade meets a +2.50% grade at station 4+200 and elevation
154.657m,180-m curve, stakeout at 30-m increments.
Part A
List station elevations, including BVC and EVC, for an equal-tangent parabolic curve for the data given. Give the elevations in order of increasing x.
Express your answers in meters to six significant figures separated by commas.
Elev =156.907,156.282,155.907,155.782,155.907,156.282,156.907m
A - 2 . 5 % grade meets a + 2 . 5 0 % grade at
