Question: A 3 0 0 m m wide rectangular beam has an effective depth d = 4 9 0 m m . the beam will be

A 300mm wide rectangular beam has an effective depth d=490mm. the beam will be designed to carry a service
dead load of 200kNm and a service live load of 210kNm. Compression reinforcement, if necessary, will have its
centroid 70mm form the extreme concrete fiber. Use 2015 NSCP. At ultimate condition U=1.2DL +1.6LL.
a. Determine the required flexural strength given the following service loads.
b. Determine the ultimate maximum moment.
c. Determine the required tension steel area.
d. Determine the required compression area

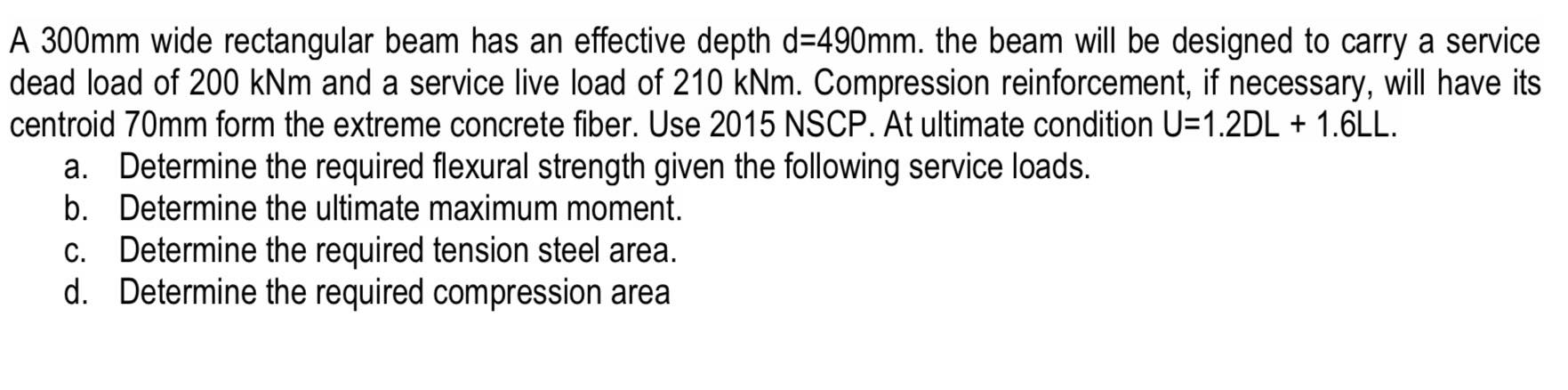

A 3 0 0 m m wide rectangular beam has an

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
