Question: A 3 . 8 - m - wide, 1 0 - m - high rectangular gate is located at the end of a rectangular passage

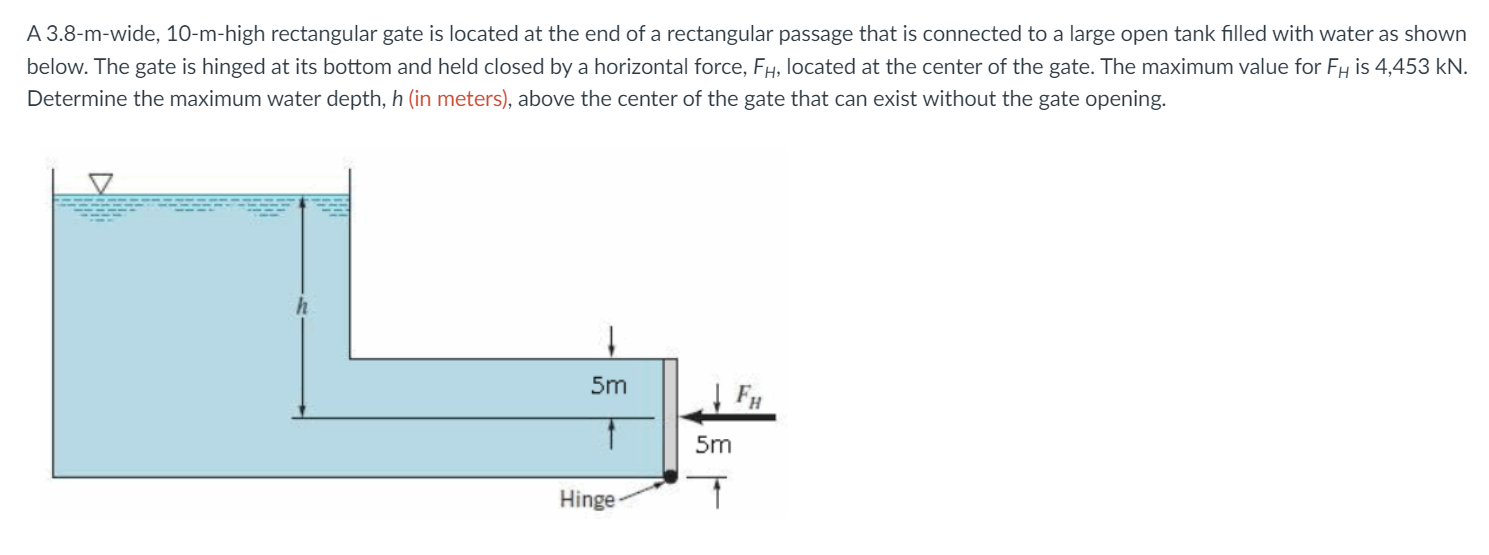

A 3.8-m-wide, 10-m-high rectangular gate is located at the end of a rectangular passage that is connected to a large open tank filled with water as shown below. The gate is hinged at its bottom and held closed by a horizontal force, FH, located at the center of the gate. The maximum value for FH is 4,453 kN. Determine the maximum water depth, h (in meters), above the center of the gate that can exist without the gate opening.
