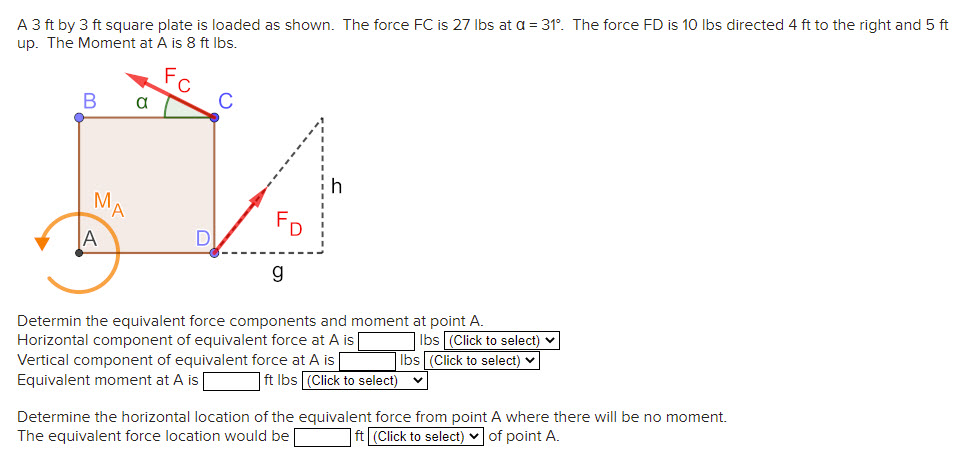

A 3 ft by 3 ft square plate is loaded as shown.The force FC is 27 lbs at = 31.The force FD is 10 lbs directed 4 ft tothe right and 5 ft up.The Moment at A is 8 ft lbs.

Determin the equivalent force components and moment at point A.

Horizontal component of equivalent force at A is ? lbs

Vertical component of equivalent force at A is ?lbs

Equivalent moment at A is ?ft lbs

Determine the horizontal location of the equivalent force from point A where there will be no moment.

The equivalent force location would be ?ft of point A.

A 3 ft by 3 ft square plate is loaded as shown. The force FC is 2? lbs at :1 = 31. The force FD is 10 lbs directed 4 ft to the right and 5 . up. The Moment atA is 8 ft lbs. -------d :'F Determin the equivalent force components and moment at point A. Horizontal component of equivalent force at A is lbs (Click to select) v Vertical component of equivalent force at A is lbs {Click to select} v t] v Equivalent moment at A is |:| ft lbs [Click to sales Determine the horizontal location of the equivalent force from point A where there will be no moment. The equivalent force location would be |ft| (Click to select} v of point A
