Question: A 3 - m - high, 9 . 5 0 - m - wide rectangular gate is hinged at the top edge at A and

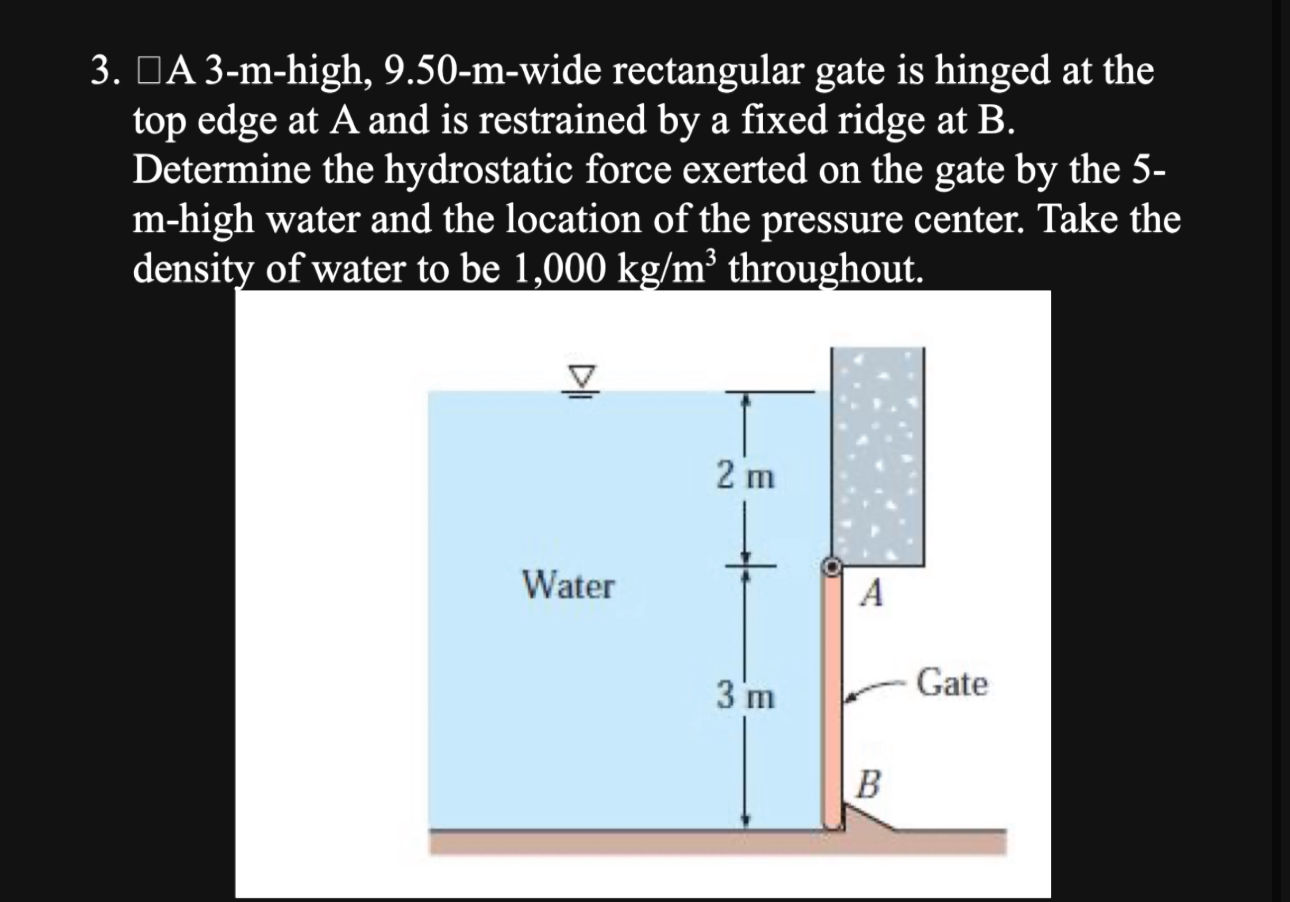

A 3-m-high, 9.50-m-wide rectangular gate is hinged at the top edge at A and is restrained by a fixed ridge at B . Determine the hydrostatic force exerted on the gate by the 5m -high water and the location of the pressure center. Take the density of water to be 1,000kgm3 throughout.
A 3 - m - high, 9 . 5 0 - m - wide rectangular

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
