Question: A 3 - phase, Y - connected, 4 - pole, 2 . 2 k V , 6 0 H z synchronous generator with 0 .

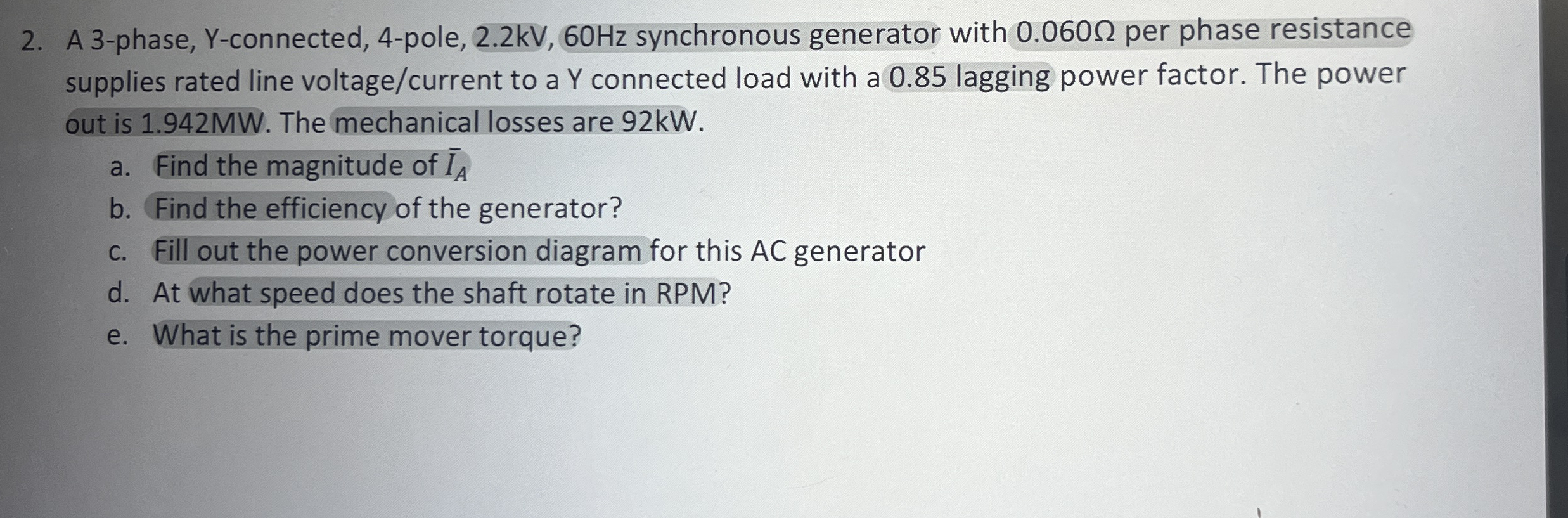

A 3-phase, Y-connected, 4-pole, 2.2kV,60Hz synchronous generator with 0.060 per phase resistance supplies rated line voltage/current to a Y connected load with a 0.85 lagging power factor. The power out is 1.942 MW . The mechanical losses are 92 kW .
a. Find the magnitude of ?bar(I)A
b. Find the efficiency of the generator?
c. Fill out the power conversion diagram for this AC generator
d. At what speed does the shaft rotate in RPM?
e. What is the prime mover torque?
A 3 - phase, Y - connected, 4 - pole, 2 . 2 k V ,
