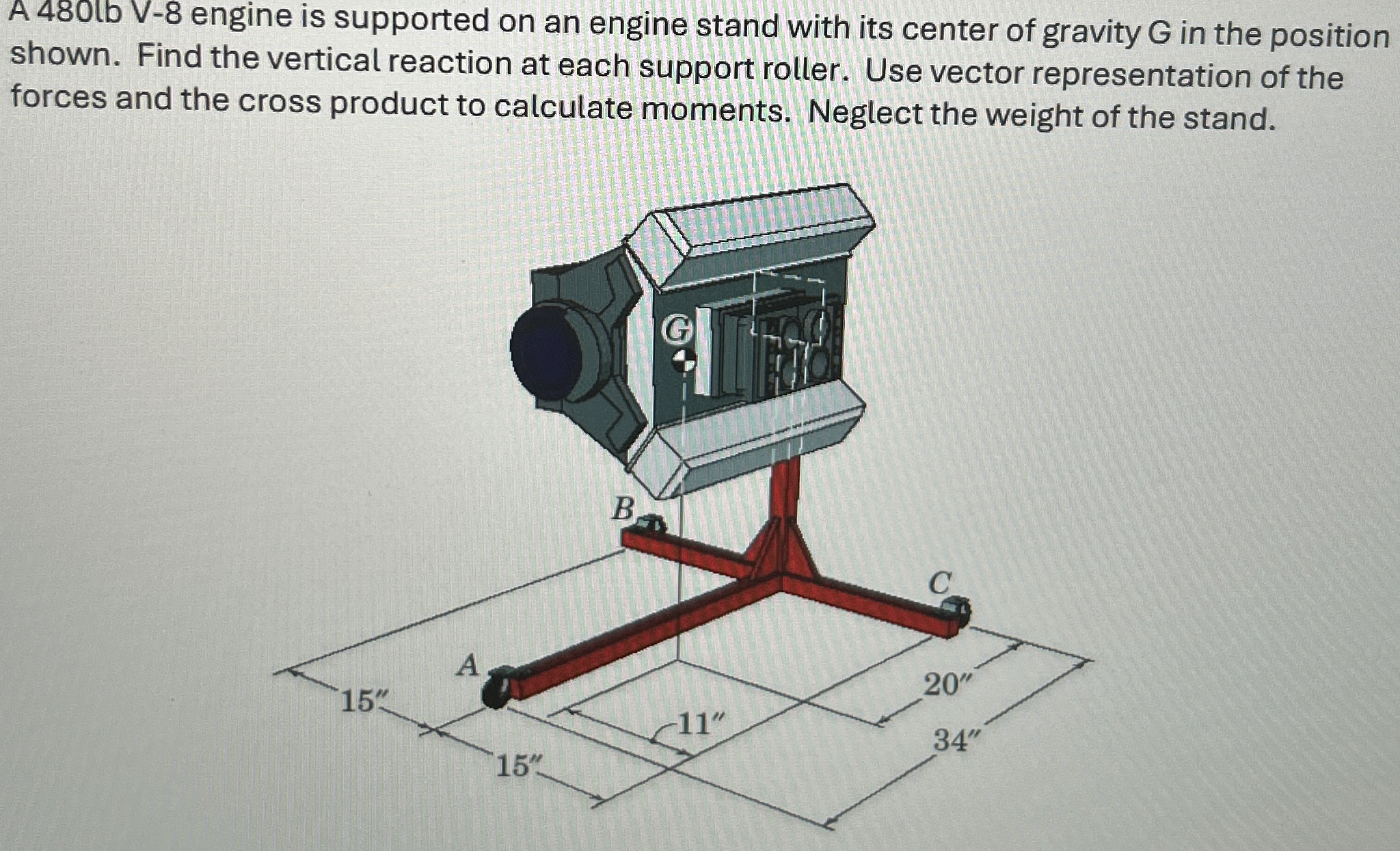

Question: A 4 8 0 lb V - 8 engine is supported on an engine stand with its center of gravity G in the position shown.

480

lb V

- 8

engine is supported on an engine stand with its center of gravity

G

in the position shown. Find the vertical reaction at each support roller. Use vector representation of the forces and the cross product to calculate moments. Neglect the weight of the stand.

A 4 8 0 lb V - 8 engine is supported on an engine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
