Question: A 5 0 0 - V , 5 0 H z , 4 - pole, 3 - phase induction motor is drawing 5 0 A

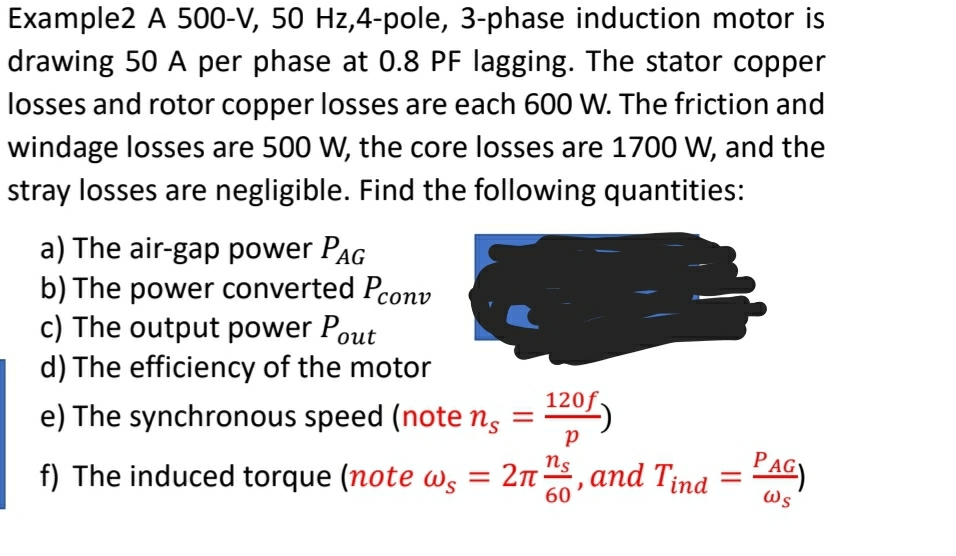

A 500-V,50Hz,4-pole, 3-phase induction motor is drawing 50 A per phase at 0.8 PF lagging. The stator copper losses and rotor copper losses are each 600 W . The friction and windage losses are 500 W , the core losses are 1700 W , and the stray losses are negligible. Find the following quantities:
a) The air-gap power PAG
b) The power converted Pconv
c) The output power Pout
d) The efficiency of the motor
e) The synchronous speed (note ns=120fp)
f) The induced torque ( note s=2ns60, and Tind=PAGs)
A 5 0 0 - V , 5 0 H z , 4 - pole, 3 - phase
