Question: A ( 5 0 - mathrm { kg } ) rectangular plate is mounted diagonally on a shaft whose mass is negligible.

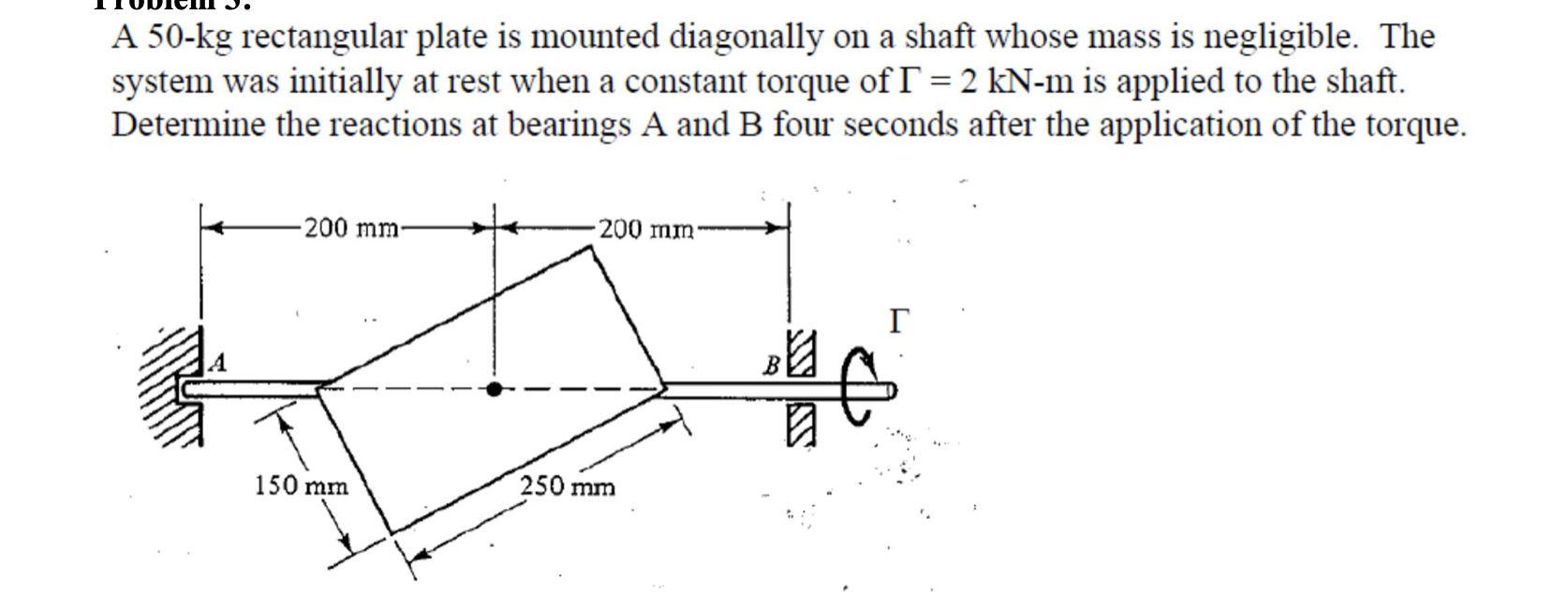

A \(50-\mathrm{kg}\) rectangular plate is mounted diagonally on a shaft whose mass is negligible. The system was initially at rest when a constant torque of \(\Gamma=2\mathrm{kN}-\mathrm{m}\) is applied to the shaft. Determine the reactions at bearings A and B four seconds after the application of the torque.
A \ ( 5 0 - \ mathrm { kg } \ ) rectangular plate

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

A 50-kg rectangular plate is mounted diagonally on a shaft whose mass is negligible. The system was initially at rest when a constant torque of 5 kN-m is applied to the shaft. Determine the reactions...
