A 5 mins./unit CDE 4 mins./unit 12 mins./unit 5 mins./unit B 10 mins./unit Process Flow Diagram...

Transcribed Image Text:

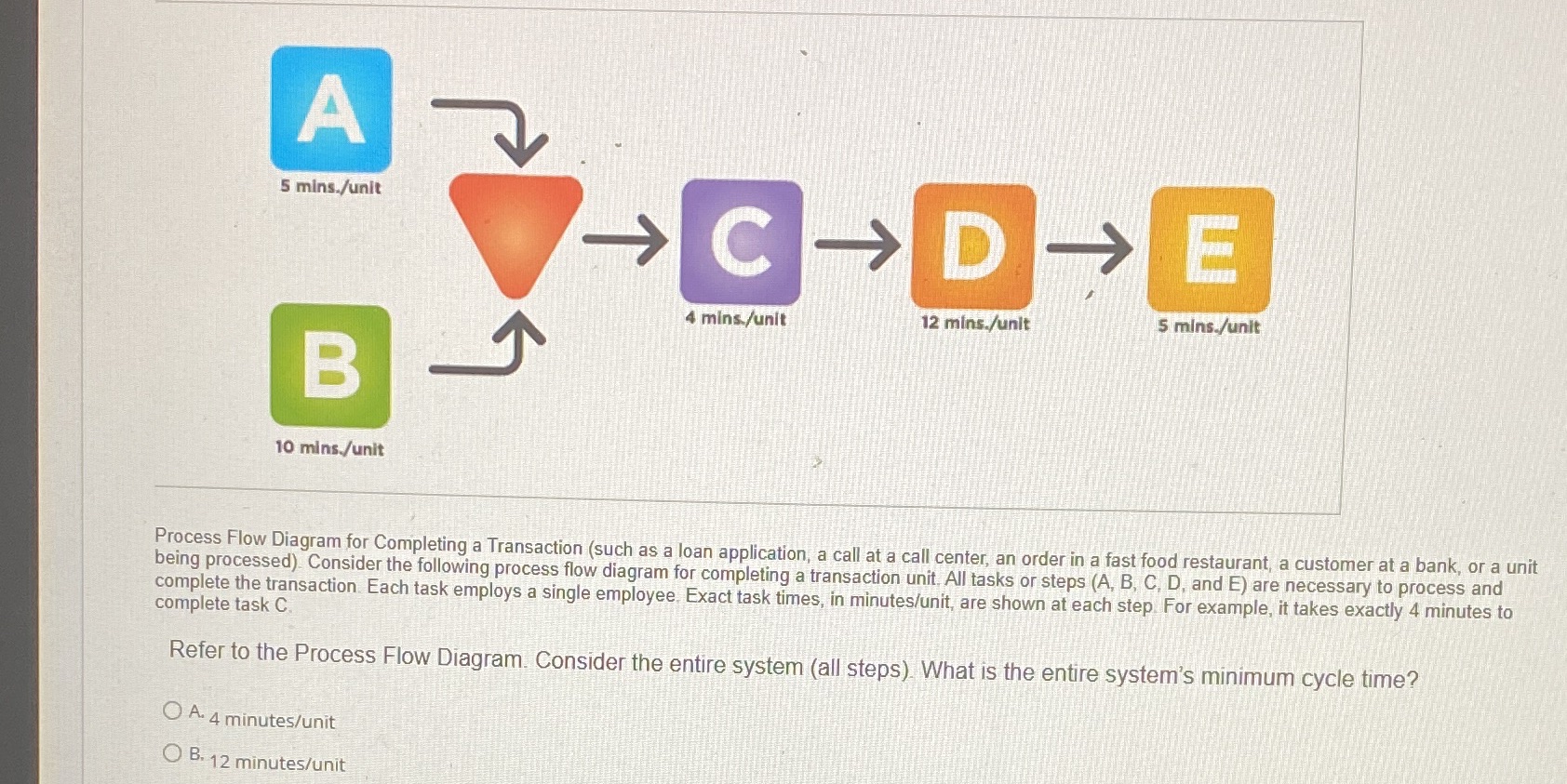

A 5 mins./unit CDE 4 mins./unit 12 mins./unit 5 mins./unit B 10 mins./unit Process Flow Diagram for Completing a Transaction (such as a loan application, a call at a call center, an order in a fast food restaurant, a customer at a bank, or a unit being processed). Consider the following process flow diagram for completing a transaction unit. All tasks or steps (A, B, C, D, and E) are necessary to process and complete the transaction. Each task employs a single employee. Exact task times, in minutes/unit, are shown at each step. For example, it takes exactly 4 minutes to complete task C Refer to the Process Flow Diagram. Consider the entire system (all steps). What is the entire system's minimum cycle time? OA. 4 minutes/unit OB. 12 minutes/unit A 5 mins./unit CDE 4 mins./unit 12 mins./unit 5 mins./unit B 10 mins./unit Process Flow Diagram for Completing a Transaction (such as a loan application, a call at a call center, an order in a fast food restaurant, a customer at a bank, or a unit being processed). Consider the following process flow diagram for completing a transaction unit. All tasks or steps (A, B, C, D, and E) are necessary to process and complete the transaction. Each task employs a single employee. Exact task times, in minutes/unit, are shown at each step. For example, it takes exactly 4 minutes to complete task C Refer to the Process Flow Diagram. Consider the entire system (all steps). What is the entire system's minimum cycle time? OA. 4 minutes/unit OB. 12 minutes/unit
