Question: A 9 0 % efficient pump Iifts water from a lower reservoir as shown in the figure. The head loss in the 1 5 0

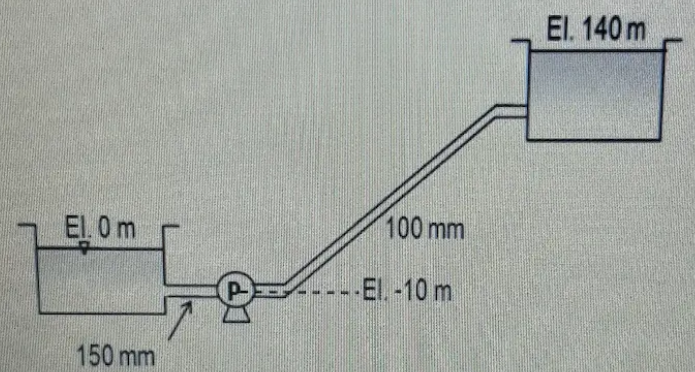

A 90% efficient pump Iifts water from a lower reservoir as shown in the figure. The head loss in the 150 mm pipe is 3 times the velocity head in that pipe, and the head loss in the 100 mm pipe is 20 times the velocity head in that pipe. Compute the pressure head,in m of water, at the discharge line right after the pump. Choices: 156.26,129,213,421.8
A 9 0 % efficient pump Iifts water from a lower

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
