Question: a) A 10mm OD pipe has cold fluid flowing inside which keeps the surface temperature at 3C. The pipe is exposed to air at 30C

a) A 10mm OD pipe has cold fluid flowing inside which

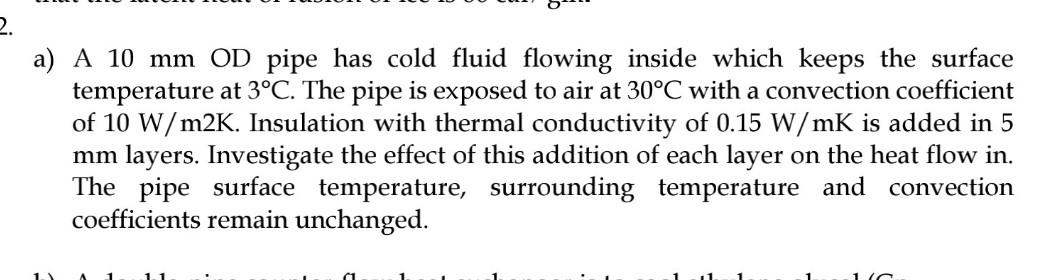

a) A 10mm OD pipe has cold fluid flowing inside which keeps the surface temperature at 3C. The pipe is exposed to air at 30C with a convection coefficient of 10W/m2K. Insulation with thermal conductivity of 0.15W/mK is added in 5 mm layers. Investigate the effect of this addition of each layer on the heat flow in. The pipe surface temperature, surrounding temperature and convection coefficients remain unchanged

Step by Step Solution

There are 3 Steps involved in it
