Question: ( A ) A beam ABCD is supported at A , B and D and has an internal hinge at C . The beam is

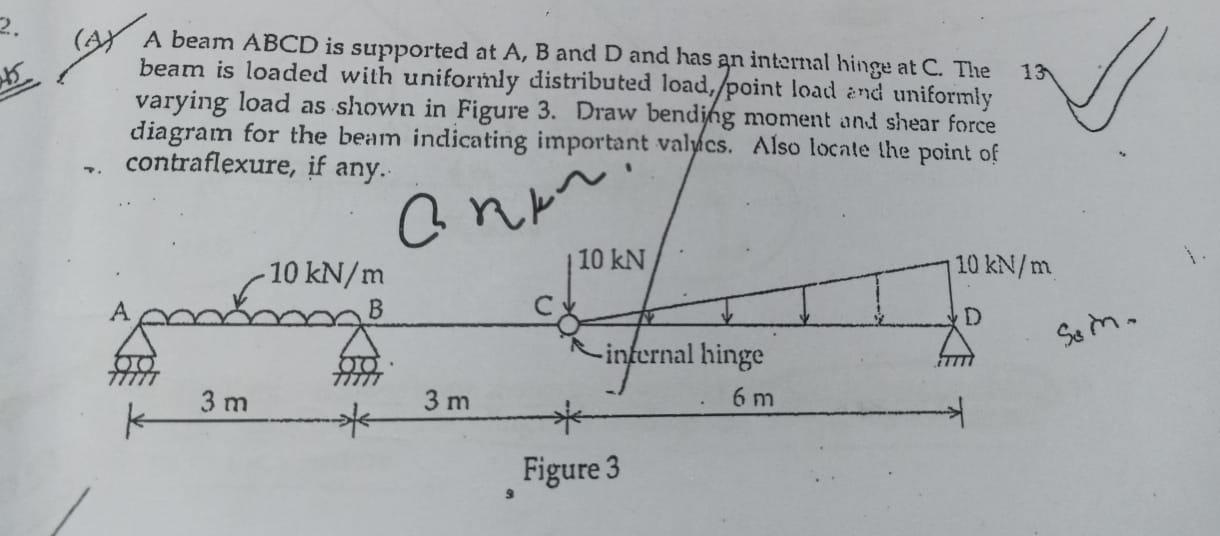

(A) A beam ABCD is supported at A,B and D and has an internal hinge at C. The beam is loaded with uniformly distributed load, point load end uniformly varying load as shown in Figure 3. Draw bendihg moment and shear force diagram for the beam indicating important valycs. Also locate the point of . contraflexure, if any. som -
infernal hinge
Figure 3
( A ) A beam ABCD is supported at A , B and D and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
