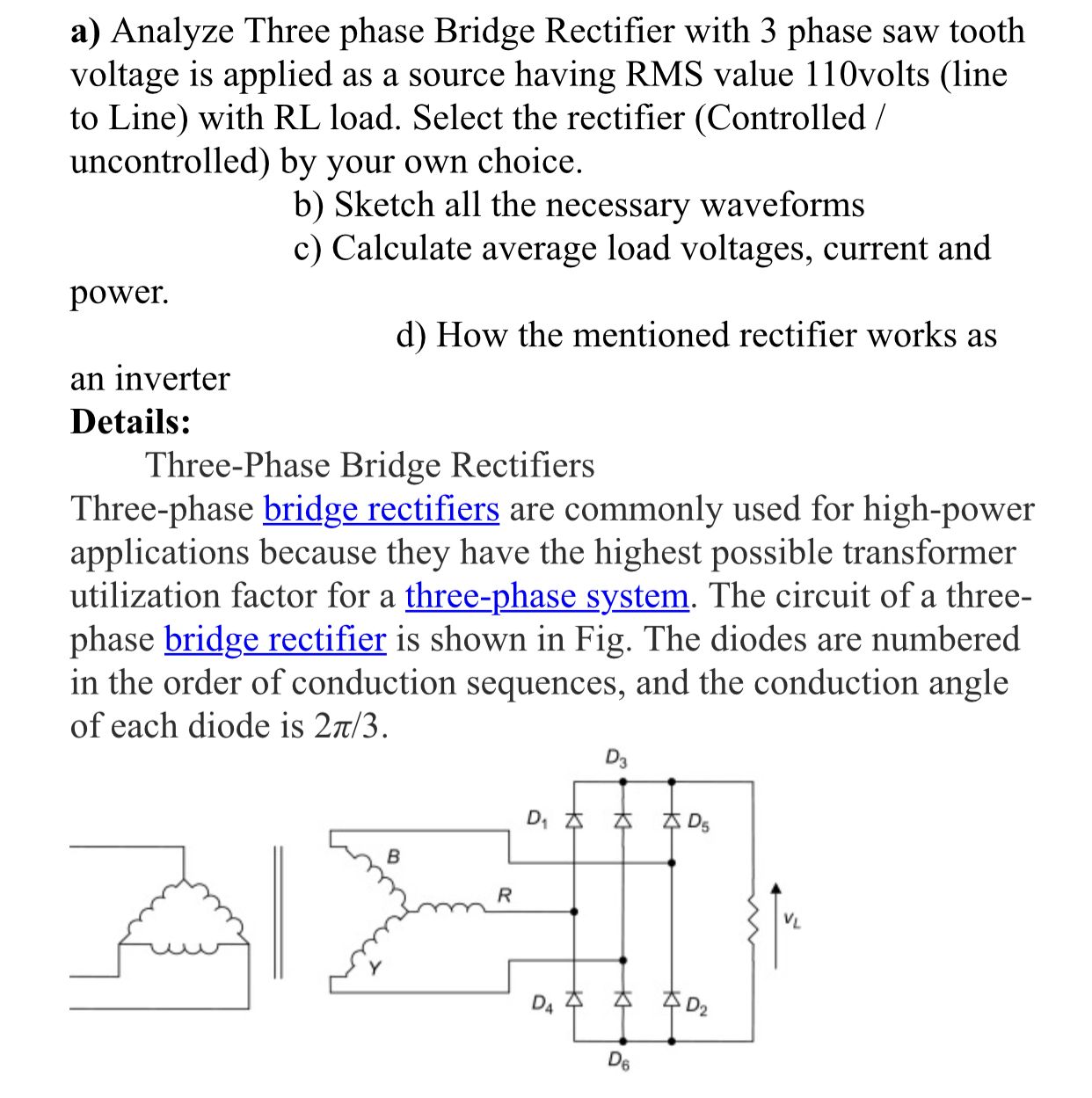

a$)$ Analyze Three phase Bridge Rectifier with $3$ phase saw tooth voltage is applied as a source having RMS value $110$ volts $($line to Line$)$ with RL load. Select the rectifier $($Controlled $/$ uncontrolled$)$ by your own choice.

b$)$ Sketch all the necessary waveforms

c$)$ Calculate average load voltages, current and

power.

d$)$ How the mentioned rectifier works as

an inverter

Details:

Three$-$Phase Bridge Rectifiers

Three$-$phase bridge rectifiers are commonly used for high$-$power applications because they have the highest possible transformer utilization factor for a three$-$phase system. The circuit of a threephase bridge rectifier is shown in Fig. The diodes are numbered in the order of conduction sequences, and the conduction angle of each diode is $\backslash (2\backslash$pi $/3\backslash ).$
