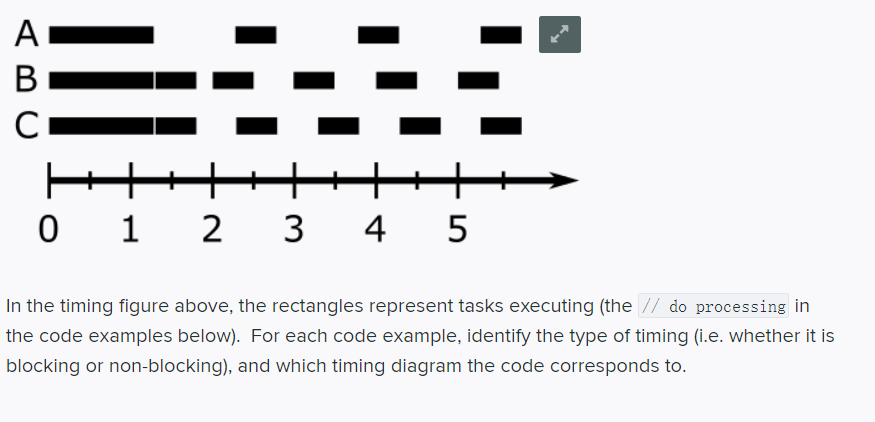

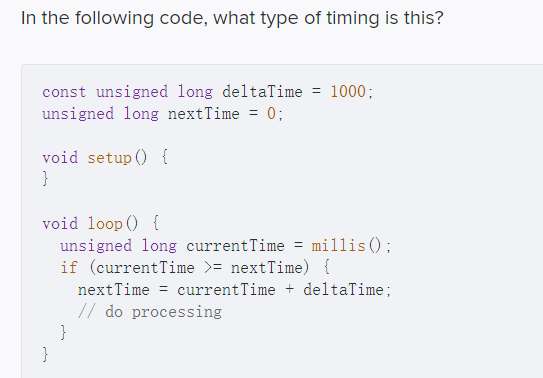

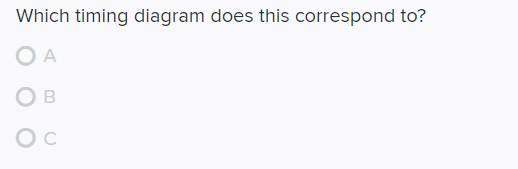

A B +++++++ 0 1 2 3 4 5 In the timing figure above, the rectangles represent tasks executing (the // do processing in the code examples below). For each code example, identify the type of timing (i.e. whether it is blocking or non-blocking), and which timing diagram the code corresponds to. In the following code, what type of timing is this? const unsigned long deltaTime = 1000; unsigned long nextTime = 0; void setup() { } void loop() { unsigned long current Time = millis(); if (currentTime >= nextTime) { nextTime = currentTime + deltaTime; // do processing } } Which timing diagram does this correspond to? B
